ECO-LED-6102
IP20
COB LED Downlight Housing Kit (2.5″–6″) — ECO-LED-6102 | ECOLEDKIT

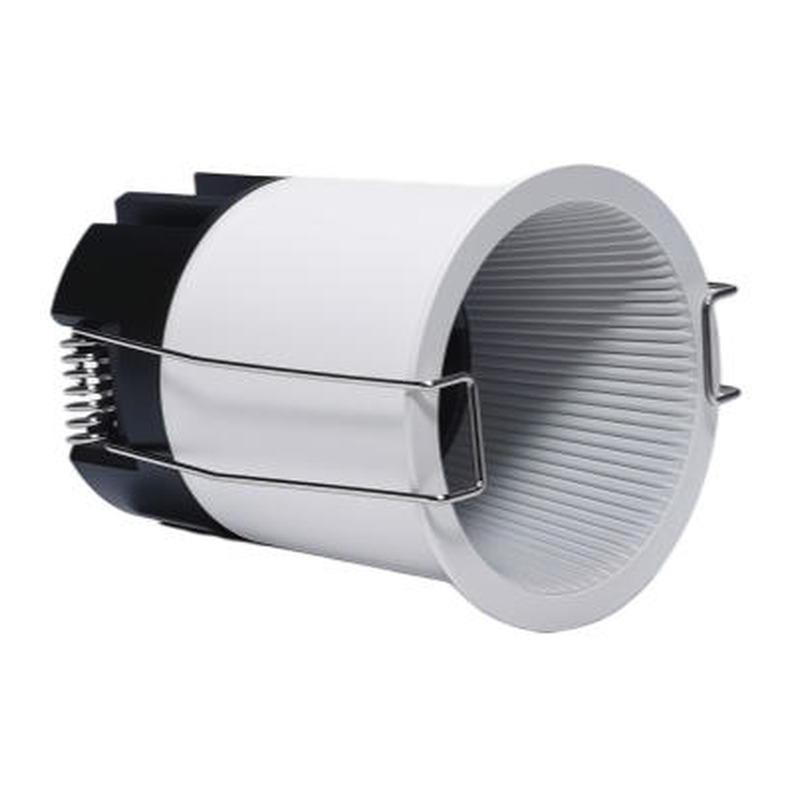

The ECO-LED-6102 is a COB LED downlight housing kit in die-cast aluminum, available from 2.5 to 6 inches. Built for commercial and office lighting in Southeast Asia — anti-glare reflector, spring-clip installation, fixed (non-adjustable) beam. Shipped as SKD parts, assembled locally, ready stock with fast lead times.This COB LED downlight housing kit ships as SKD parts and works with any wattage-matched driver.
Specifications
| Power | Face Ø | Cutout | Height | Beam Angle | Trim Color |
|---|---|---|---|---|---|
| 9W | 62mm | 55mm | 78mm | Lens 24°/36°/55° | Optional Sand White / Sand Black |
| 12W | 72mm | 65mm | 78mm | Lens 24°/36°/55° | Optional Sand White / Sand Black |
| 15W | 82mm | 75mm | 80mm | Lens 24°/36°/55° | Optional Sand White / Sand Black |
| 18W | 105mm | 95mm | 88mm | Lens 36°/55° | Optional Sand White / Sand Black |
| 25W | 115mm | 105mm | 93mm | Lens 36° | Optional Sand White / Sand Black |
General
| Model | ECO-LED-6102 |
| Shape | Round |
| Housing Material | Die-cast Aluminum (Heatsink + Trim Ring) |
| IP Rating | IP20 (Indoor) |
| Bracket | 1304/020/1507 |
| Includes | Aluminum housing parts, optical parts, springs |
Key Features
- ✓ Die-cast aluminum housing, excellent heat dissipation✓ COB LED compatible, interchangeable lens (24°/36°/55°)✓ Tool-free spring clip installation✓ Anti-glare reflector for comfortable commercial lighting✓ IP20 rated for indoor dry locations✓ Full size range: 2.5″–6″, one series covers whole project✓ OEM/ODM & custom packaging supported
ECOLEDKIT 6102 — Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ECOLEDKIT 6102 |
| Type | Round Recessed |
| Heat Sink Material | Die-cast Aluminum (ADC12) |
| Optics | Lens |
| Beam Angle Options | 24°/36°/55° |
| Face Diameter Range | 62-115mm |
| Cutout Size Range | 55-105mm |
| Housing Height Range | 78-93mm |
| COB Power Range | 9-25W |
| IP Rating | IP20 (indoor) |
| LED Compatibility | COB LED only |
| Variants | 5 variants |
| Standard Colors | White / Black (custom colors available) |
| Mounting Hardware | Spring clips + Screws + Fixing clips (included) |
| MOQ | 100 sets (50 sets negotiable) |
FAQ
Q: What light source does the ECO-LED-6102 use?
A: It is built for COB LED light sources, which give a uniform beam and consistent color for commercial spaces.
Q: Is the beam adjustable?
A: No. The ECO-LED-6102 is a fixed (non-adjustable) downlight housing, designed for general lighting in offices, shops and corridors.
Q: What sizes are available?
A: The full series covers 2.5″, 3″, 4″, 5″ and 6″ — one supplier for your whole project.
Q: Is the housing die-cast aluminum?

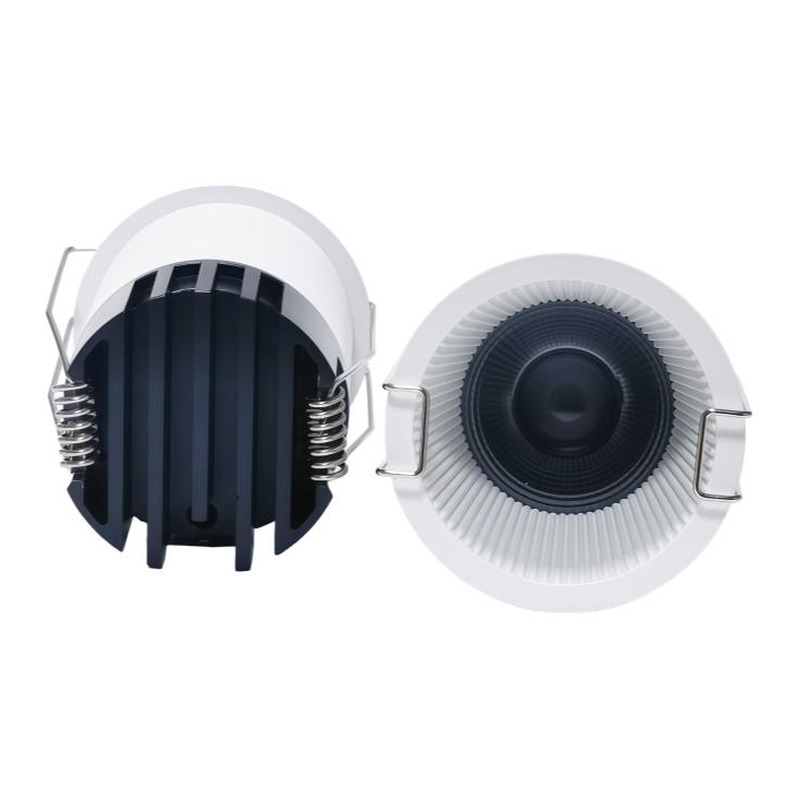

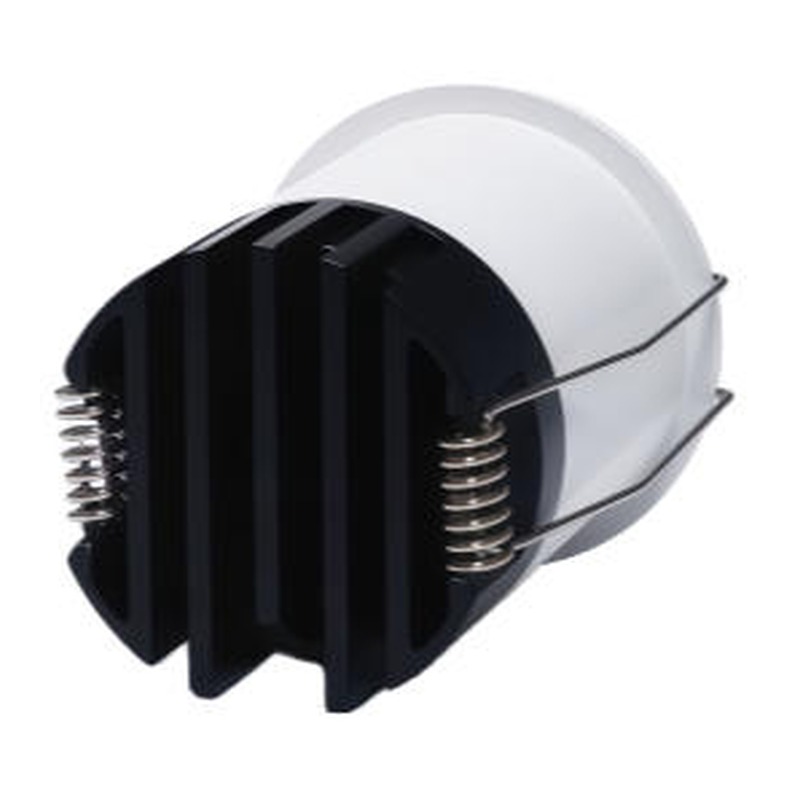

A: Yes, die-cast aluminum with a finned heat sink to keep the COB module and driver cool in hot climates.
Q: What are the MOQ and lead time?
A: MOQ is 100 pcs, and a first order of 50 pcs is also welcome. Regular lead time is 5 days; express delivery in 3 days is available.
Q: What sizes and wattages are available?
A: The COB downlight SKD kit covers 2.5 inch, 3 inch, 4 inch, 5 inch and 6 inch sizes (9W-25W) – one supplier for your whole project.
Why Choose a COB LED Downlight Housing Kit?
COB (chip-on-board) LED modules are the standard choice for commercial downlights: they produce one clean, uniform beam with no multiple shadow dots, and they run efficiently at high wattages. The housing matters just as much. A die-cast aluminum body with a finned heat sink pulls heat away from the COB module, so light output stays stable through long operating hours — important in the hot, humid climate of Southeast Asia.

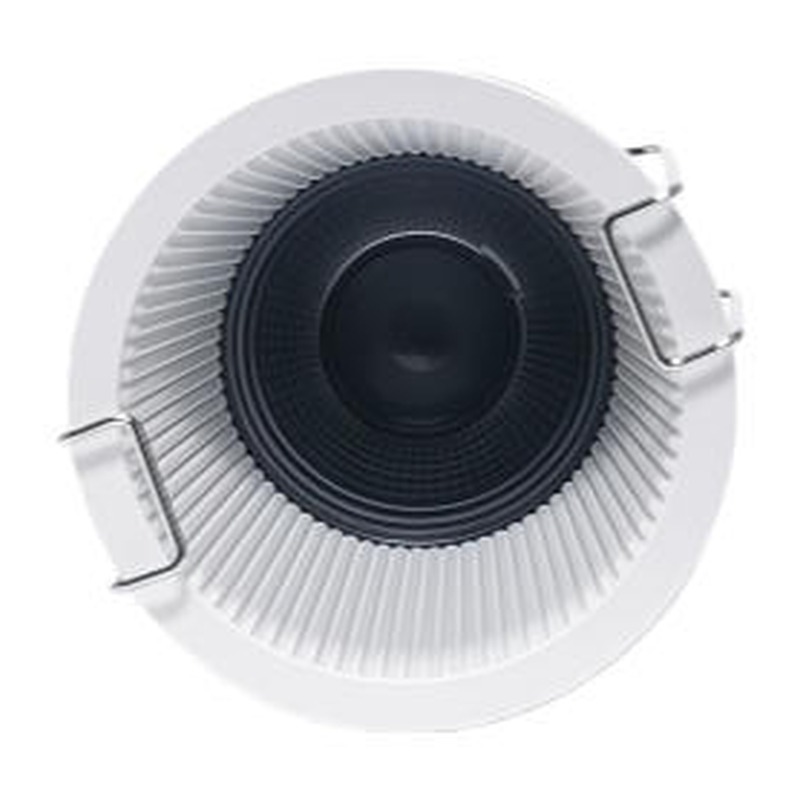

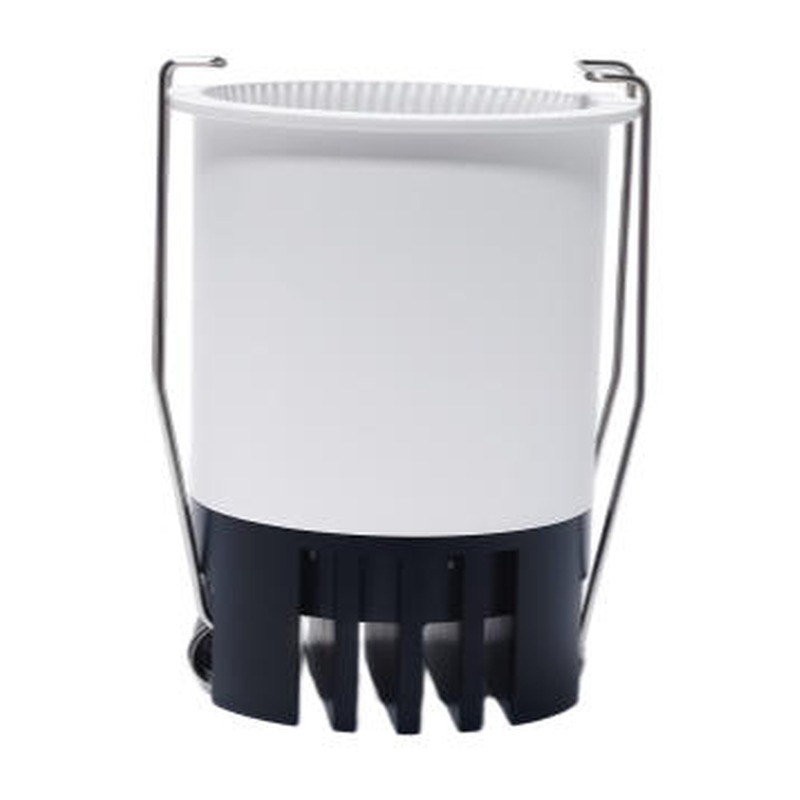

The ring-grooved reflector softens the beam edge and cuts glare, which is why this kit fits offices, retail shops, showrooms and corridors where customers work under the lights all day. Spring clips fix the housing into the ceiling opening without tools, and the fixed beam keeps installation simple.Because this COB LED downlight housing kit ships unassembled, your local factory controls final cost and lead time.
We ship the ECO-LED-6102 as an SKD kit: housing parts arrive unassembled in a compact carton and your local factory completes assembly. That means lower import cost per unit and faster delivery to project sites. With sizes from 2.5 to 6 inches in one series, importers and lighting assemblers can cover a whole project with a single supplier.
