ECO-LED-6103A — 3″ Round Aluminium Face Ring Housing SKD Kit
IP20

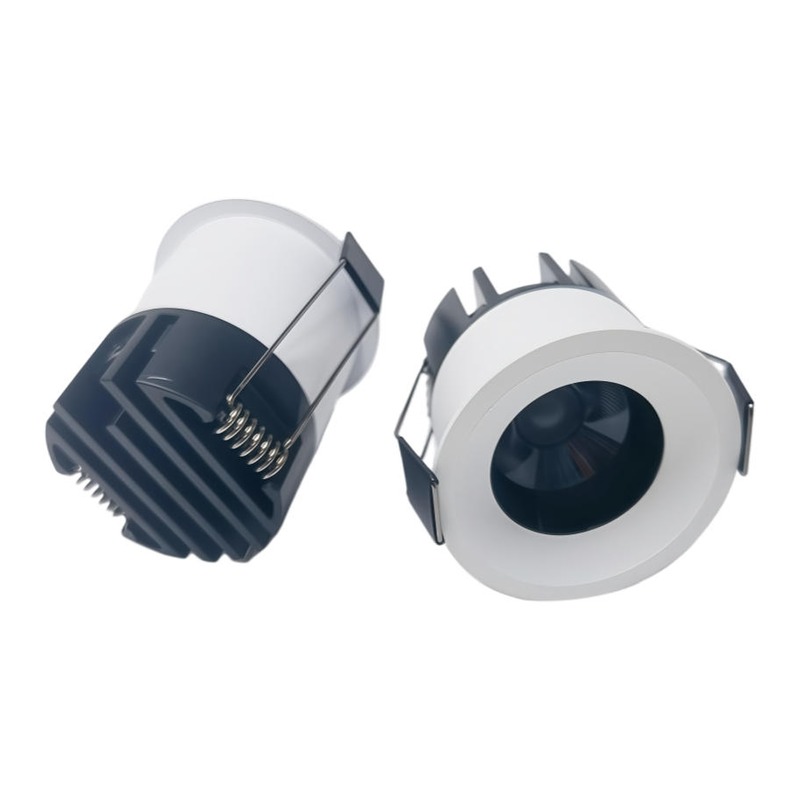

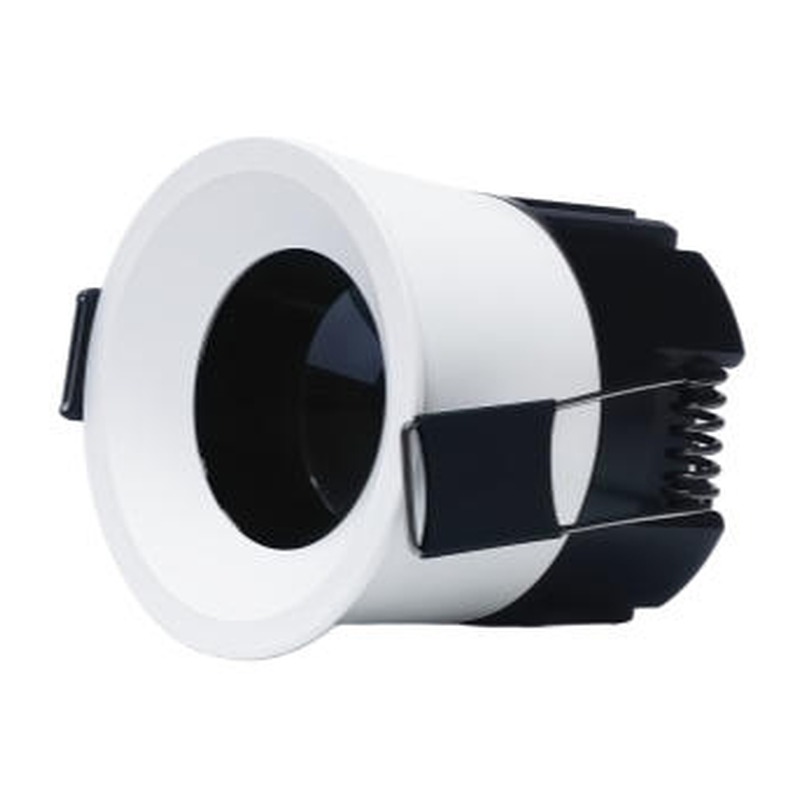

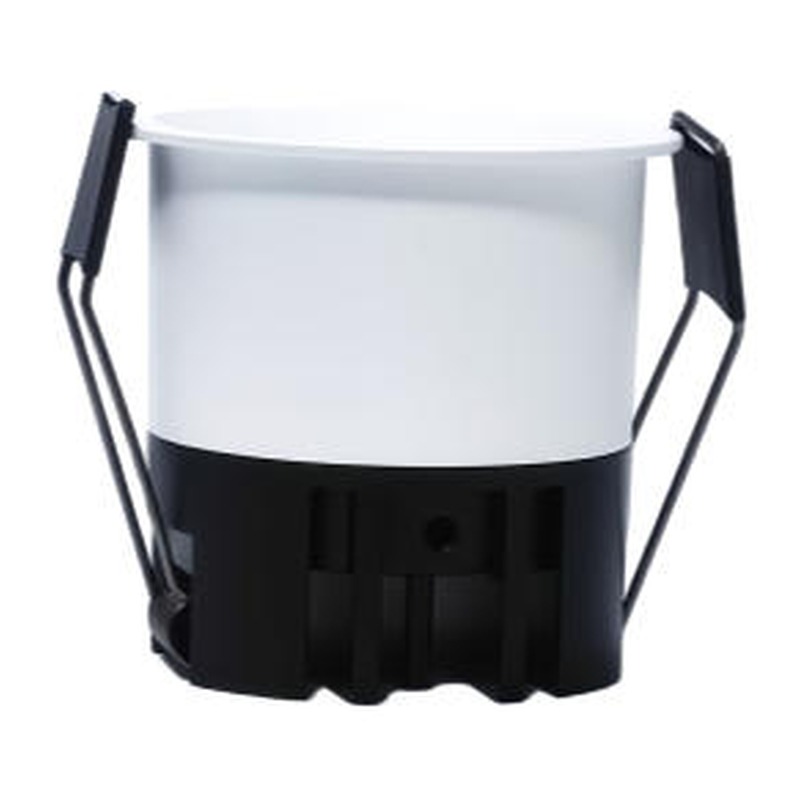

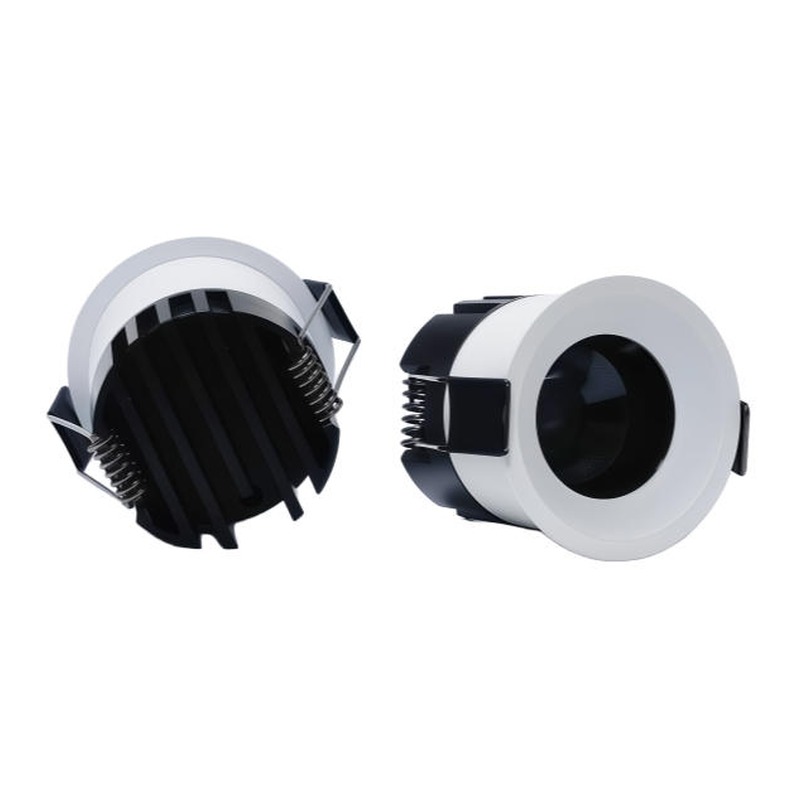

3″ Round LED Downlight Housing Kit
The ECO-LED-6103A is a compact 3-inch LED downlight housing kit with die-cast aluminum heatsink and trim ring. It fits small cutout openings from 55 to 75 mm and covers 9W to 15W – an economical SKD platform for hotel and corridor lighting.
Specifications
Power
Face Ø
Cutout
Height
Beam Angle
Trim Color
9W
62mm
55mm
68mm
Lens 15°/24°/36°
Optional Sand White / Sand Black
12W
72mm
65mm
66mm
Lens 15°/24°/36°
Optional Sand White / Sand Black
15W
82mm
75mm
80mm
Lens 24°/36°
Optional Sand White / Sand Black
General
Model
ECO-LED-6103A
Shape
Round
Housing Material
Die-cast Aluminum (Heatsink + Trim Ring)
IP Rating
IP20 (Indoor)
Bracket
1304/020
Includes
Aluminum housing parts, optical parts, springs
For Small-Cutout Commercial Projects
The 6103A fits ceilings with cutouts from 55 to 75 mm, ideal for hotel rooms, corridors, washrooms and compact offices. Choose 9W, 12W or 15W with 15/24/36 degree lenses.
Die-Cast Heat Path for Reliable Output
Die-cast aluminum throughout keeps the COB and driver cool through long operating hours, protecting lumen output and driver life in warm climates.
Import Duty Savings on the 6103A SKD Kit
Because the 6103A ships as a housing kit – without the LED and driver – it typically clears customs at a lower duty rate than a finished luminaire in many markets. Your local factory completes assembly, which also shortens last-mile delivery to your project sites.
Works with Your Own COB & Driver
You are never locked into one supplier. The 6103A accepts almost any COB LED and driver that matches the wattage – tell us your driver brand and model and we will confirm fit. OEM/ODM with custom packaging is available.
A: MOQ is 100 pcs per size. For a first trial order, 50 pcs is also acceptable.
Q: How long is the lead time?
A: We keep partial stock – most orders ship in 5 days (fastest 3 days). For large quantities, the lead time is negotiated case by case.
Why Choose the ECO-LED-6103A Downlight Housing?
In commercial lighting, the housing decides how long your COB and driver survive. A body that cannot shed heat makes the module run hot: lumen output drops and drivers fail early. The ECO-LED-6103A is built from Heatsink: Die-cast Aluminum so heat leaves the COB fast, even in the hot, humid climate of Southeast Asia.
We supply it as an SKD kit – unassembled parts in a compact carton, finished by your local factory. You get two practical benefits: lower import cost per unit, and faster delivery to your project sites. We already ship these kits to lighting assemblers and importers in 50+ countries.
With 9W to 15W and cutouts of 55 -75, the ECO-LED-6103A covers the most common downlight openings. Spring clips make installation a two-minute job, and the housing works with almost any driver that matches the wattage, so you are never locked into one supplier.
Request a free sample – WhatsApp +86 132 4938 9989 or send an inquiry. 50+ countries served.
