ECO-LED-6208
IP20
Round Deep Anti-Glare LED Downlight Housing Kit (Up to 60W)

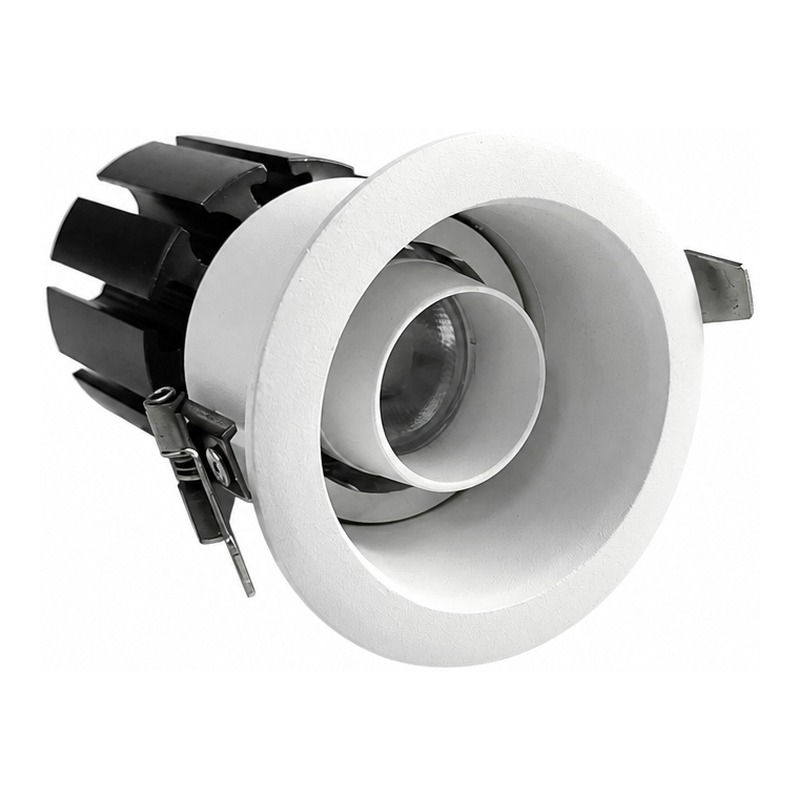

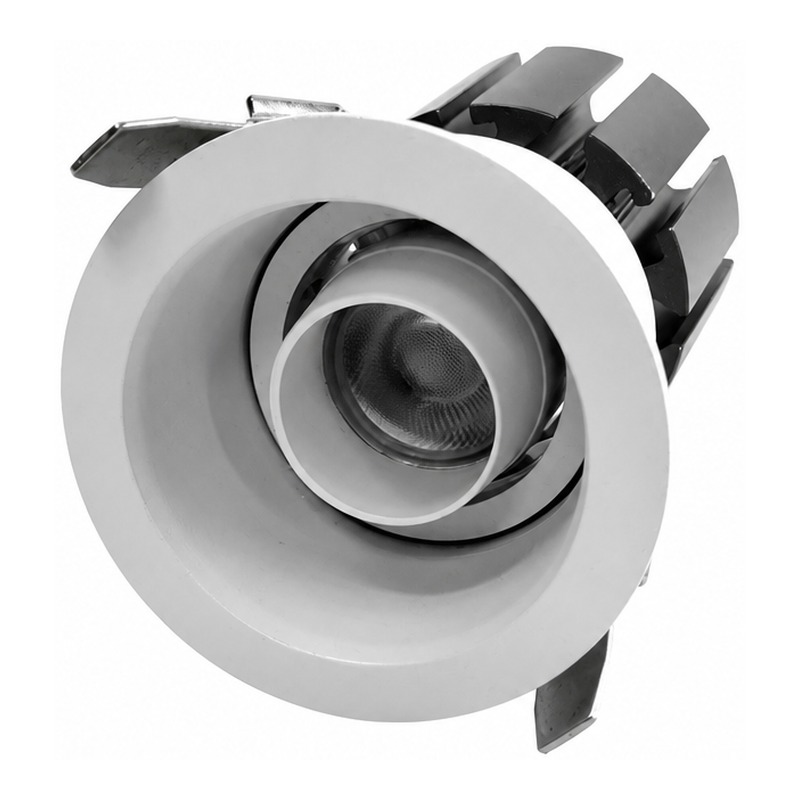

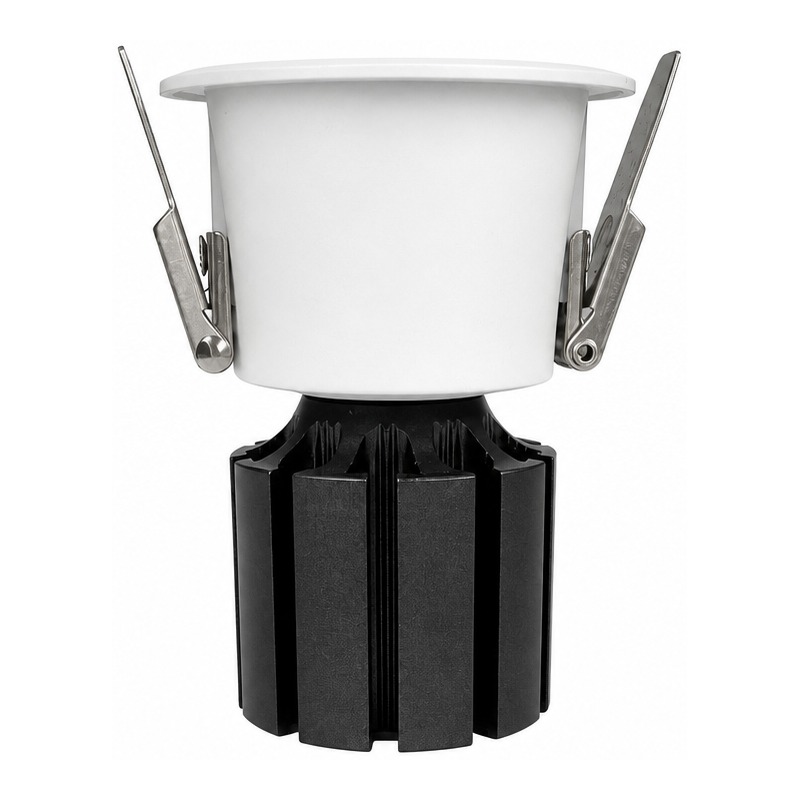

The ECO-LED-6208 is a round deep anti-glare LED downlight housing kit with an extruded aluminum heatsink, covering 7W up to 60W. Cutouts from 55 to 125 mm make it the most flexible anti-glare round kit in the range for shops, offices and lobbies.
Specifications
| Power | Face Ø | Cutout | Height | Beam Angle | Trim Color |
|---|---|---|---|---|---|
| 7-10W | 65mm | 55mm | 90mm | Lens 15°/24°/36° | Optional White / Black |
| 10-15W | 65mm | 55mm | 105mm | Lens 15°/24°/36° | Optional White / Black |
| 12-18W | 85mm | 75mm | 105mm | Lens 15°/24°/36°60° | Optional White / Black |
| 15-20W | 85mm | 75mm | 120mm | Lens 15°/24°/36°60° | Optional White / Black |
| 20-25W | 85mm | 75mm | 133mm | Lens 15°/24°/36°60° | Optional White / Black |
| 18-30W | 105mm | 95mm | 125mm | Lens 15°/24°/36°60° | Optional White / Black |
| 30-35W | 105mm | 95mm | 138mm | Lens 15°/24°/36°60° | Optional White / Black |
| 30-40W | 135mm | 125mm | 125mm | Lens 15°/24°/36°60° | Optional White / Black |
| 40-60W | 135mm | 125mm | 165mm | Lens 15°/24°/36°60° | Optional White / Black |
General
| Model | ECO-LED-6208 |
| Shape | Round |
| Housing Material | Die-cast Aluminum (Heatsink + Trim Ring) |
| IP Rating | IP20 (Indoor) |
| Bracket | 020/1304 |

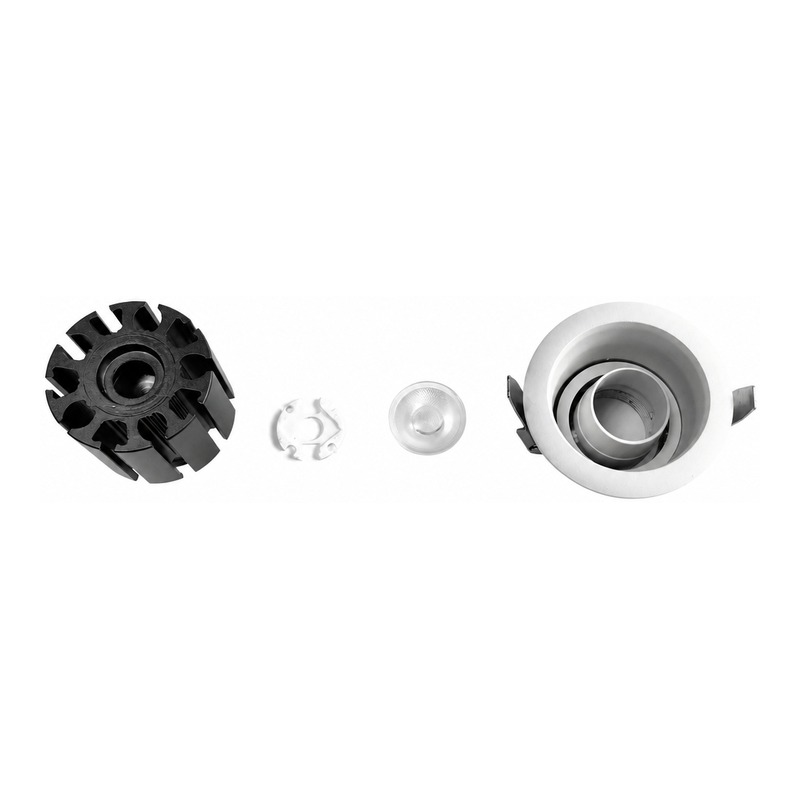

| Includes | Round deep anti-glare type; aluminum housing parts, optical parts, springs |
For High-Power Round Downlights
From compact 7W to 60W high-output, the 6208 covers one round platform across cutouts 55-125 mm – fewer SKUs, more projects.

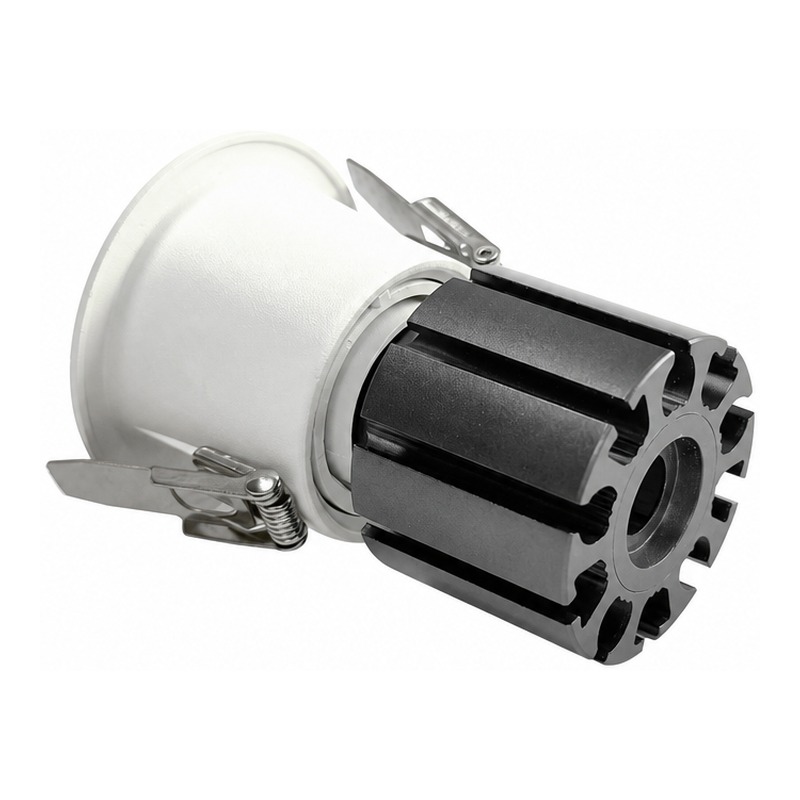

Extruded Heatsink Fins for 60W Loads
Extruded aluminum fins maximize surface area, keeping the 60W COB and driver cool in continuous operation.
Import Duty Savings on the 6208 SKD Kit
Because the 6208 ships as a housing kit – without the LED and driver – it typically clears customs at a lower duty rate than a finished luminaire in many markets. Your local factory completes assembly, which also shortens last-mile delivery to your project sites.
Works with Your Own COB & Driver
You are never locked into one supplier. The 6208 accepts almost any COB LED and driver that matches the wattage – tell us your driver brand and model and we will confirm fit. OEM/ODM with custom packaging is available.
Key Features
- Round deep anti-glare, low UGR
- Extruded aluminum heatsink fins for 60W
- Cutouts from 55 to 125 mm, 9 sizes
- Power from 7W to 60W
- White / black trim
ECOLEDKIT 6208 — Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ECOLEDKIT 6208 |
| Type | Round Deep Anti-Glare |
| Heat Sink Material | Extruded Aluminum (6063) |
| Optics | Lens |
| Beam Angle Options | 15°-60° |
| Face Diameter Range | 65-135mm |
| Cutout Size Range | 55-125mm |
| Housing Height Range | 90-165mm |
| COB Power Range | 7-60W |
| IP Rating | IP20 (indoor) |
| LED Compatibility | COB LED only |
| Variants | 9 variants |
| Standard Colors | White / Black (custom colors available) |
| Mounting Hardware | Spring clips + Screws + Fixing clips (included) |
| MOQ | 100 sets (50 sets negotiable) |
FAQ
Q: What driver fits the ECO-LED-6208?
A: Almost any LED driver that matches the wattage works. Tell us your driver brand and model and we will confirm fit.
Q: Does the kit include the LED and driver?
A: No – it ships as an SKD kit with housing, optical parts and springs, so you install your own COB LED and driver.
Q: What cutout sizes does it fit?
A: Cutout range is 55 至 125; tell us your project size and we will confirm the right option.
Q: What beam angles are available?
A: 15° / 24° / 36°. Interchangeable lenses keep your stock simple.
Q: What is the MOQ?
A: MOQ is 100 pcs per size. For a first trial order, 50 pcs is also acceptable.
Q: How long is the lead time?
A: We keep partial stock – most orders ship in 5 days (fastest 3 days). For large quantities, the lead time is negotiated case by case.
Why Choose the ECO-LED-6208 Downlight Housing?
In commercial lighting, the housing decides how long your COB and driver survive. A body that cannot shed heat makes the module run hot: lumen output drops and drivers fail early. The ECO-LED-6208 is built from Heatsink: Extruded Aluminum so heat leaves the COB fast, even in the hot, humid climate of Southeast Asia.
We supply it as an SKD kit – unassembled parts in a compact carton, finished by your local factory. You get two practical benefits: lower import cost per unit, and faster delivery to your project sites. We already ship these kits to lighting assemblers and importers in 50+ countries.
With 7-10W to 40-60W and cutouts of 55 至 125, the ECO-LED-6208 covers the most common downlight openings. Spring clips make installation a two-minute job, and the housing works with almost any driver that matches the wattage, so you are never locked into one supplier.
Request a free sample – WhatsApp +86 132 4938 9989 or send an inquiry. 50+ countries served.
