ECO-LED-6210
IP20

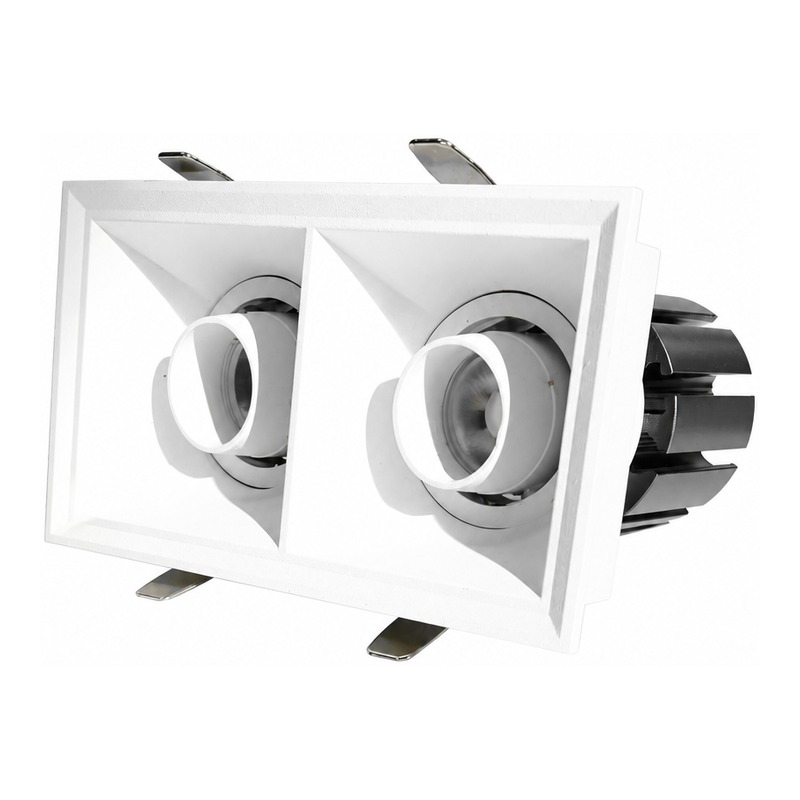

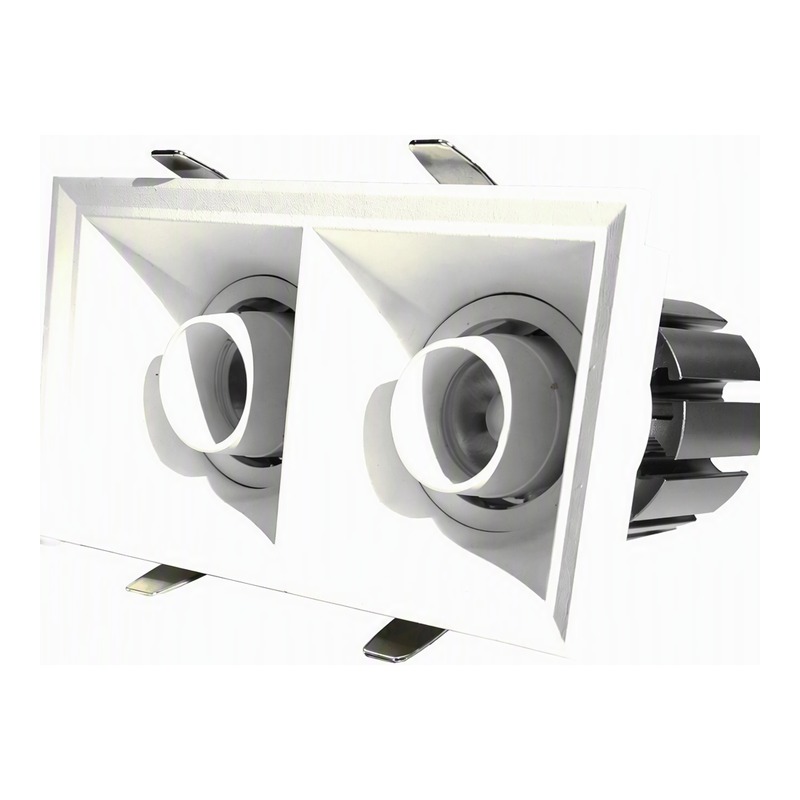

Twin-Head Square LED Downlight Housing Kit (High Power)
The ECO-LED-6210 is a twin-head square LED downlight housing kit with two light modules in one body – ideal for long corridors, aisles and continuous linear layouts. Dual modules up to 30-50W per head with an extruded aluminum heatsink and deep anti-glare cups.
Specifications
| Power | Face Ø | Cutout | Height | Beam Angle | Trim Color |
|---|---|---|---|---|---|
| 7-10W*2 | 70×128mm | 60×115mm | 90mm | Lens 15°/24°/36° | Optional White / Black |
| 10-15W*2 | 70×128mm | 60×115mm | 108mm | Lens 15°/24°/36° | Optional White / Black |
| 12-18W*2 | 90×168mm | 80×155mm | 108mm | Lens 15°/24°/36°55° | Optional White / Black |
| 15-20W*2 | 90×168mm | 80×155mm | 123mm | Lens 15°/24°/36°55° | Optional White / Black |
| 20-25W*2 | 90×168mm | 80×155mm | 136mm | Lens 15°/24°/36°55° | Optional White / Black |
| 18-30W*2 | 110×220mm | 100×200mm | 130mm | Lens 15°/24°/36°55° | Optional White / Black |
| 30-35W*2 | 110×220mm | 100×200mm | 140mm | Lens 15°/24°/36°55° | Optional White / Black |
| 30-40W*2 | 138×276mm | 125×255mm | 128mm | Lens 15°/24°/36°55° | Optional White / Black |
| 30-50W*2 | 138×276mm | 125×255mm | 168mm | Lens 15°/24°/36°55° | Optional White / Black |
General
| Model | ECO-LED-6210 |
| Shape | Round |
| Housing Material | Die-cast Aluminum (Heatsink + Trim Ring) |
| IP Rating | IP20 (Indoor) |
| Bracket | 020/1304 |
| Includes | Twin-head square deep anti-glare type; aluminum housing parts, optical parts, springs |
For Corridors, Aisles & Linear Layouts
Two heads in one fixture light long spaces evenly with fewer cutouts. The 6210 comes in twin-square faces from 70×128 to 138×276 mm.

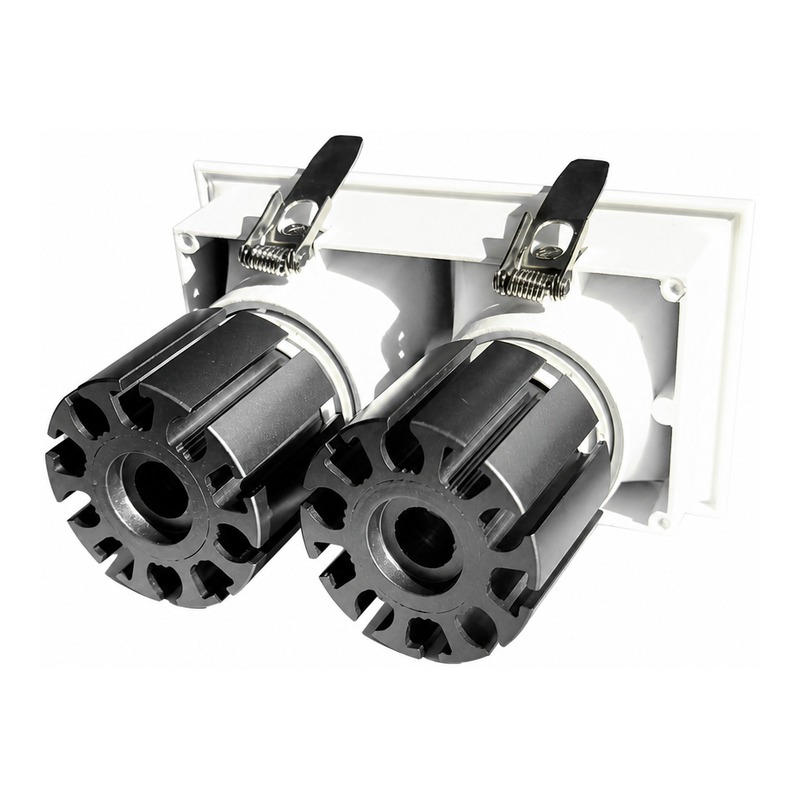

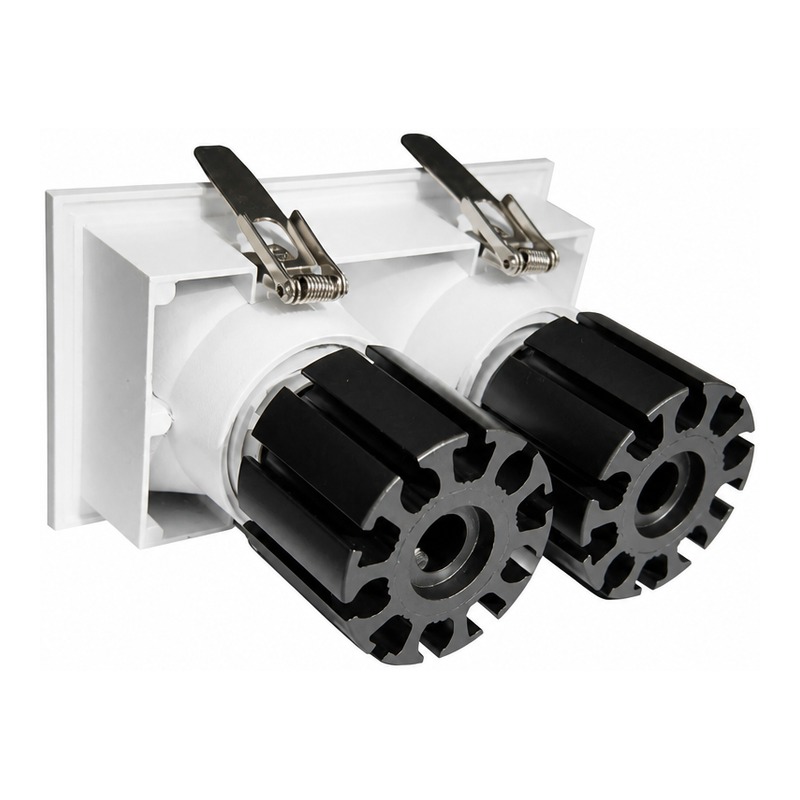

Extruded Heatsink for Dual Modules
The extruded aluminum body dissipates heat from both modules, keeping output stable at high wattage.
Import Duty Savings on the 6210 SKD Kit
Because the 6210 ships as a housing kit – without the LED and driver – it typically clears customs at a lower duty rate than a finished luminaire in many markets. Your local factory completes assembly, which also shortens last-mile delivery to your project sites.
Works with Your Own COB & Driver
You are never locked into one supplier. The 6210 accepts almost any COB LED and driver that matches the wattage – tell us your driver brand and model and we will confirm fit. OEM/ODM with custom packaging is available.
Key Features
- Twin-head square design, one fixture two modules
- Deep anti-glare cups on both heads
- Extruded aluminum heatsink
- Dual power up to 30-50W per head
- Faces from 70×128 to 138×276 mm

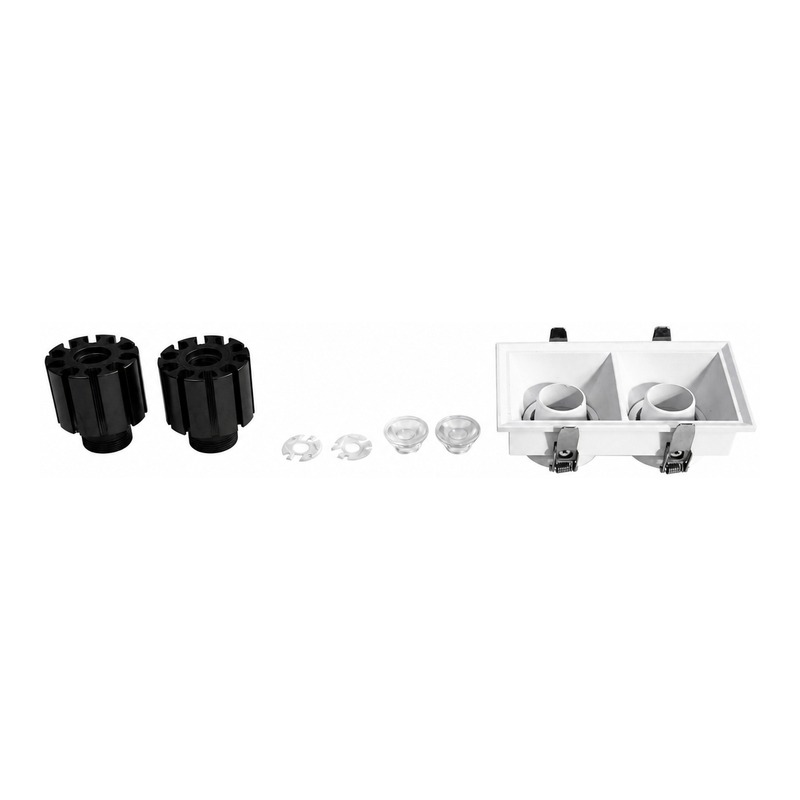

- SKD kit: housing + optical parts + springs
ECOLEDKIT 6210 — Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ECOLEDKIT 6210 |
| Type | Double-Head Square Deep Anti-Glare |
| Heat Sink Material | Extruded Aluminum (6063) |
| Optics | Lens |
| Beam Angle Options | 15°-55° |
| Face Diameter Range | 70×128-138×276mm |
| Cutout Size Range | 60×115-125×255mm |
| Housing Height Range | 90-168mm |
| COB Power Range | 7-50W (×2) |
| IP Rating | IP20 (indoor) |
| LED Compatibility | COB LED only |
| Variants | 9 variants |
| Standard Colors | White / Black (custom colors available) |
| Mounting Hardware | Spring clips + Screws + Fixing clips (included) |
| MOQ | 100 sets (50 sets negotiable) |
FAQ
Q: What driver fits the ECO-LED-6210?
A: Almost any LED driver that matches the wattage works. Tell us your driver brand and model and we will confirm fit.
Q: Does the kit include the LED and driver?
A: No – it ships as an SKD kit with housing, optical parts and springs, so you install your own COB LED and driver.
Q: What cutout sizes does it fit?
A: Cutout range is 60×115 and 125×255; tell us your project size and we will confirm the right option.
Q: What beam angles are available?
A: 15° / 24° / 36°. Interchangeable lenses keep your stock simple.
Q: What is the MOQ?
A: MOQ is 100 pcs per size. For a first trial order, 50 pcs is also acceptable.
Q: How long is the lead time?
A: We keep partial stock – most orders ship in 5 days (fastest 3 days). For large quantities, the lead time is negotiated case by case.
Why Choose the ECO-LED-6210 Downlight Housing?
In commercial lighting, the housing decides how long your COB and driver survive. A body that cannot shed heat makes the module run hot: lumen output drops and drivers fail early. The ECO-LED-6210 is built from Heatsink: Extruded Aluminum so heat leaves the COB fast, even in the hot, humid climate of Southeast Asia.
We supply it as an SKD kit – unassembled parts in a compact carton, finished by your local factory. You get two practical benefits: lower import cost per unit, and faster delivery to your project sites. We already ship these kits to lighting assemblers and importers in 50+ countries.
With 7-10W*2 to 30-50W*2 and cutouts of 60×115 至 125×255, the ECO-LED-6210 covers the most common downlight openings. Spring clips make installation a two-minute job, and the housing works with almost any driver that matches the wattage, so you are never locked into one supplier.
