ECO-LED-6213A
IP20

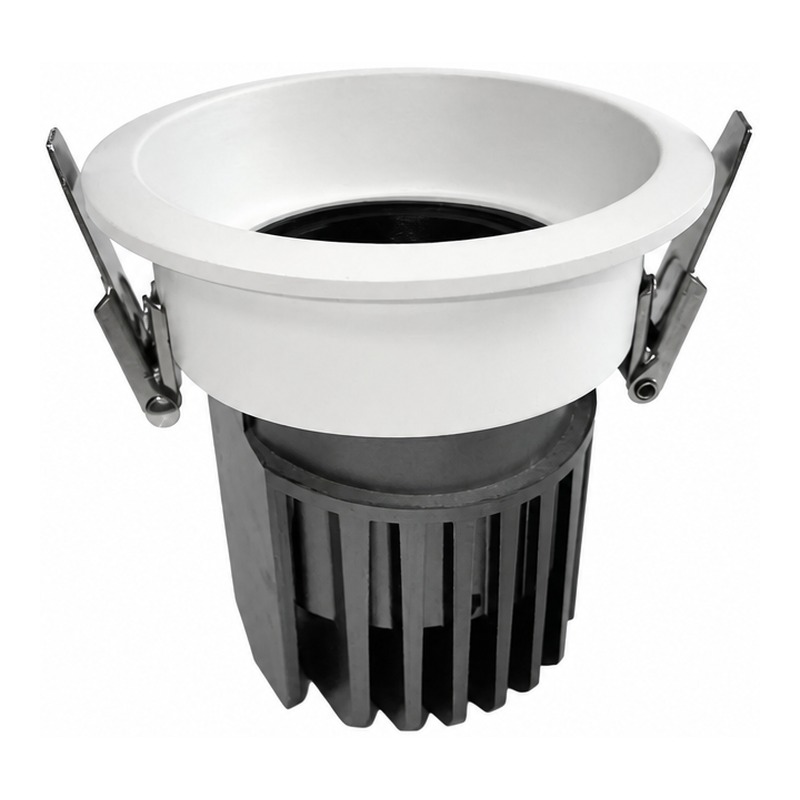

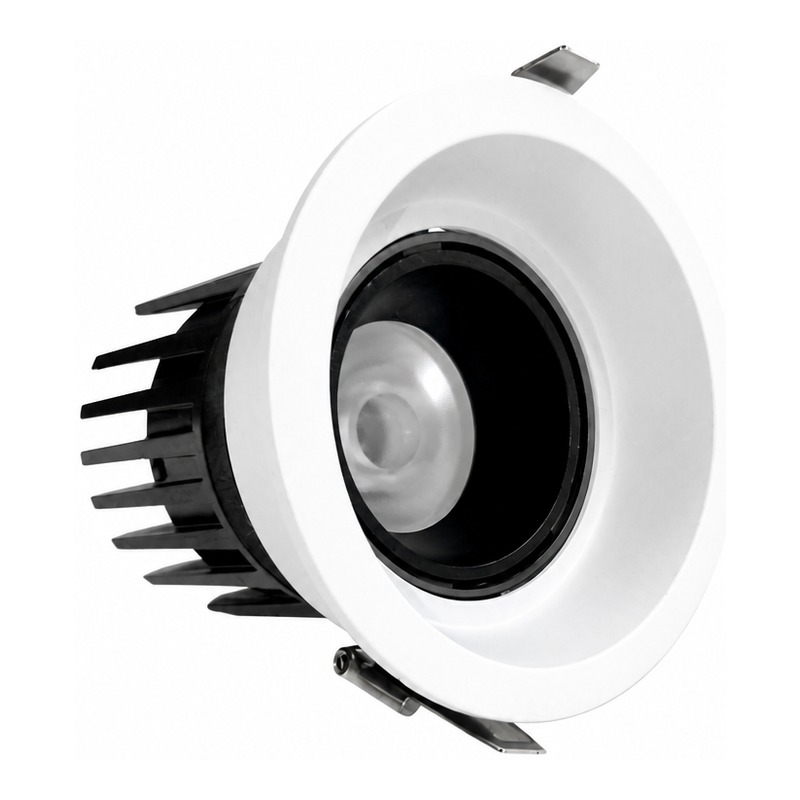

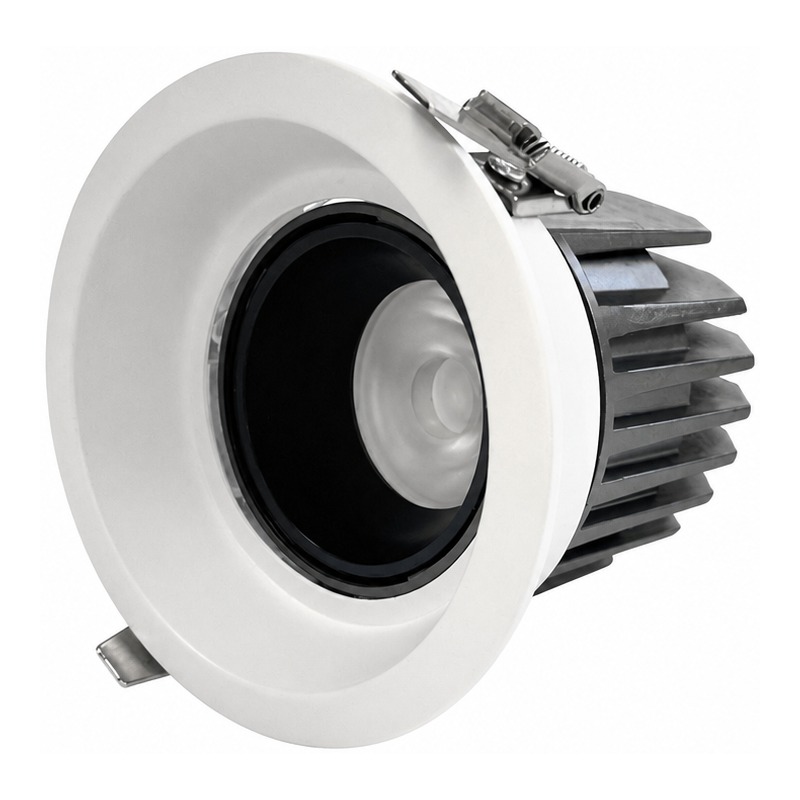

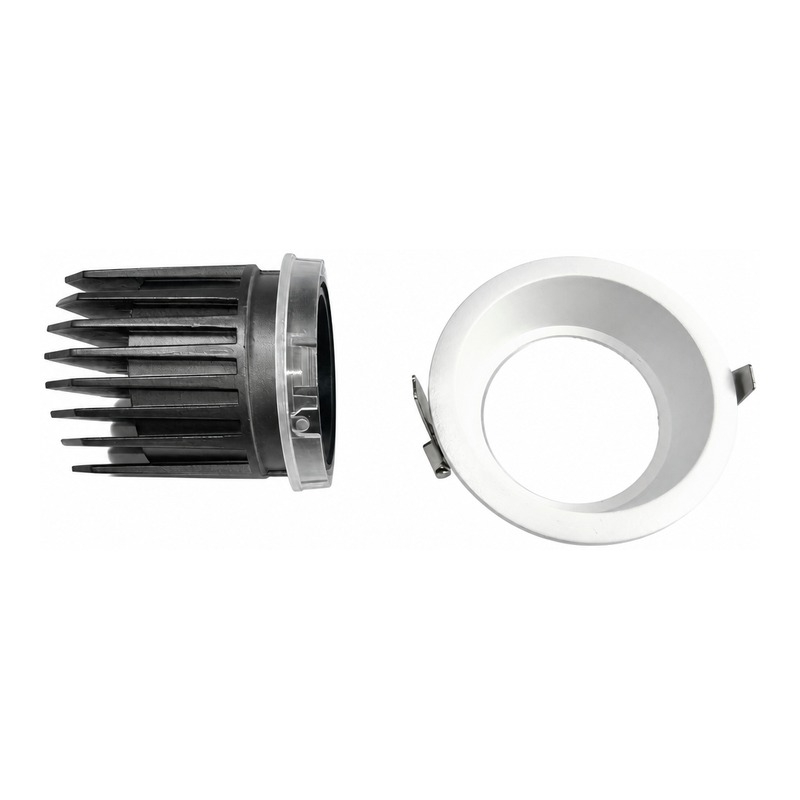

Multi-Optic LED Downlight Housing Kit (Lens / Reflector / Adjustable)
The ECO-LED-6213A is a multi-optic LED downlight housing kit – the same housing with three optic choices: lens type, reflector type, or 8-45 degree adjustable-focus. Die-cast aluminum, up to 40W, cutouts from 75-80 to 115-130 mm.
Specifications
| Power | Face Ø | Cutout | Height | Beam Angle | Trim Color |
|---|---|---|---|---|---|
| 7-16W | 88mm | 75-80mm | 88mm | Lens 15°/24°/36°/55° | Optional White / Black |
| 20-30W | 108mm | 95-100mm | 110mm | Lens 15°/24°/36°/55° | Optional White / Black |
| 30-40W | 138mm | 115-130mm | 125mm | Lens 15°/24°/36°/55° | Optional White / Black |
| 7-16W | 88mm | 75-80mm | 88mm | Reflector 15°/24°/36° | Optional White / Black |
| 20-30W | 108mm | 95-100mm | 110mm | Reflector 15°/24°/36° | Optional White / Black |
| 30-40W | 138mm | 115-130mm | 125mm | Reflector 15°/24°/36° | Optional White / Black |
| 7-16W | 88mm | 75-80mm | 88mm | 8-45° | Optional White / Black |
| 20-30W | 108mm | 95-100mm | 110mm | 8-45° | Optional White / Black |
| 30-40W | 138mm | 115-130mm | 125mm | 8-45° | Optional White / Black |
General
| Model | ECO-LED-6213A |
| Shape | Round |
| Housing Material | Die-cast Aluminum (Heatsink + Trim Ring) |
| IP Rating | IP20 (Indoor) |
| Bracket | 020/1507 |
| Includes | Lens type; aluminum housing parts, optical parts, springs |
For Flexible Light Distribution
One housing, three optics: lens for uniform pools, reflector for crisp edges, adjustable-focus for display lighting. Ideal for shops and galleries.
Die-Cast Aluminum for All Optic Types
The die-cast body keeps the COB module cool at up to 40W regardless of the optic you choose.
Import Duty Savings on the 6213A SKD Kit
Because the 6213A ships as a housing kit – without the LED and driver – it typically clears customs at a lower duty rate than a finished luminaire in many markets. Your local factory completes assembly, which also shortens last-mile delivery to your project sites.
Works with Your Own COB & Driver
You are never locked into one supplier. The 6213A accepts almost any COB LED and driver that matches the wattage – tell us your driver brand and model and we will confirm fit. OEM/ODM with custom packaging is available.
Key Features
- Three optics in one housing: lens / reflector / adjustable
- Adjustable-focus option: 8-45 degrees
- Die-cast aluminum heatsink, up to 40W
- Cutouts from 75-80 to 115-130 mm
- White / black trim
- SKD kit: housing + optical parts + springs
ECOLEDKIT 6213A — Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ECOLEDKIT 6213A |
| Type | Round Multi-Optic |
| Heat Sink Material | Die-cast Aluminum (ADC12) |
| Optics | Lens / Reflector / Adjustable Focus |
| Beam Angle Options | 8°-55° |
| Face Diameter Range | 88-138mm |
| Cutout Size Range | 75-130mm |
| Housing Height Range | 88-125mm |
| COB Power Range | 7-40W |
| IP Rating | IP20 (indoor) |
| LED Compatibility | COB LED only |
| Variants | 9 variants |
| Standard Colors | White / Black (custom colors available) |
| Mounting Hardware | Spring clips + Screws + Fixing clips (included) |
| MOQ | 100 sets (50 sets negotiable) |
FAQ
Q: What driver fits the ECO-LED-6213A?
A: Almost any LED driver that matches the wattage works. Tell us your driver brand and model and we will confirm fit.
Q: Does the kit include the LED and driver?
A: No – it ships as an SKD kit with housing, optical parts and springs, so you install your own COB LED and driver.
Q: What cutout sizes does it fit?
A: Cutout range is 75-80 and 115-130; tell us your project size and we will confirm the right option.
Q: What beam angles are available?
A: Lens 15° / 24° / 36° / 55°. Interchangeable lenses keep your stock simple.
Q: What is the MOQ?
A: MOQ is 100 pcs per size. For a first trial order, 50 pcs is also acceptable.
Q: How long is the lead time?
A: We keep partial stock – most orders ship in 5 days (fastest 3 days). For large quantities, the lead time is negotiated case by case.
Why Choose the ECO-LED-6213A Downlight Housing?
In commercial lighting, the housing decides how long your COB and driver survive. A body that cannot shed heat makes the module run hot: lumen output drops and drivers fail early. The ECO-LED-6213A is built from Heatsink: Die-cast Aluminum so heat leaves the COB fast, even in the hot, humid climate of Southeast Asia.
We supply it as an SKD kit – unassembled parts in a compact carton, finished by your local factory. You get two practical benefits: lower import cost per unit, and faster delivery to your project sites. We already ship these kits to lighting assemblers and importers in 50+ countries.
With 7-16W to 30-40W and cutouts of 75-80 至 115-130, the ECO-LED-6213A covers the most common downlight openings. Spring clips make installation a two-minute job, and the housing works with almost any driver that matches the wattage, so you are never locked into one supplier.
Request a free sample – WhatsApp +86 132 4938 9989 or send an inquiry. 50+ countries served.
