ECO-LED-6215
IP20
Universal LED Downlight Housing Kit (10-40W, SKD)
The ECO-LED-6215 is a universal LED downlight housing kit with an aluminum profile heatsink and a stamped trim ring. From 10W to 40W with optional cup colors (white, black, gunmetal, bright silver), it is the flexible choice for everyday commercial projects.
Specifications
| Power | Face Ø | Cutout | Height | Beam Angle | Trim Color |
|---|---|---|---|---|---|
| 10-12W | 63mm | 55mm | 86mm | Lens 15/24/36/60 | Optional White / Black |
| 15W | 63mm | 55mm | 110mm | Lens 15/24/36/60 | Optional White / Black |
| 10W-12W | 83mm | 75mm | 83mm | Lens 15/24/36/60 | Optional White / Black |
| 15-20W | 83mm | 75mm | 110mm | Lens 15/24/36/60 | Optional White / Black |
| 25-30W | 83mm | 75mm | 140mm | Lens 15/24/36/60 | Optional White / Black |
| 10-12W | 92mm | 80mm | 83mm | Lens 15/24/36/60 | Optional White / Black |
| 15-20W | 92mm | 80mm | 110mm | Lens 15/24/36/60 | Optional White / Black |
| 25-30W | 92mm | 80mm | 140mm | Lens 15/24/36/60 | Optional White / Black |
| 10-12W | 97mm | 90mm | 83mm | Lens 15/24/36/60 | Optional White / Black |
| 15-20W | 97mm | 90mm | 110mm | Lens 15/24/36/60 | Optional White / Black |
| 25-30W | 97mm | 90mm | 140mm | Lens 15/24/36/60 | Optional White / Black |
| 30-35W | 108mm | 95mm | 124mm | Lens 15/24/36/60 | Optional White / Black |
| 35-40W | 108mm | 95mm | 145mm | Lens 15/24/36/60 | Optional White / Black |
| 30W | 108mm | 95mm | 125mm | Lens 15/24/36/60 | Optional White / Black |
General
| Model | ECO-LED-6215 |
| Shape | Round |
| Housing Material | Die-cast Aluminum (Heatsink + Trim Ring) |
| IP Rating | IP20 (Indoor) |
| Bracket | 020/1507 |
| Includes | Aluminum housing parts, optical parts, springs |
For Everyday Commercial Projects
Schools, shops and offices need a reliable general-purpose housing. The 6215 covers 10-40W with cup colors to match the interior.
Aluminum Profile Heatsink, Stamped Trim
The aluminum profile body cools the COB reliably, and the stamped trim keeps the kit economical.
Import Duty Savings on the 6215 SKD Kit
Because the 6215 ships as a housing kit – without the LED and driver – it typically clears customs at a lower duty rate than a finished luminaire in many markets. Your local factory completes assembly, which also shortens last-mile delivery to your project sites.
Works with Your Own COB & Driver
You are never locked into one supplier. The 6215 accepts almost any COB LED and driver that matches the wattage – tell us your driver brand and model and we will confirm fit. OEM/ODM with custom packaging is available.
Key Features
- Universal platform for everyday projects
- Aluminum profile heatsink, stamped trim
- Cup colors: white / black / gunmetal / bright silver
- 14 sizes, cutouts 55 to 95 mm
- 10W to 40W power range

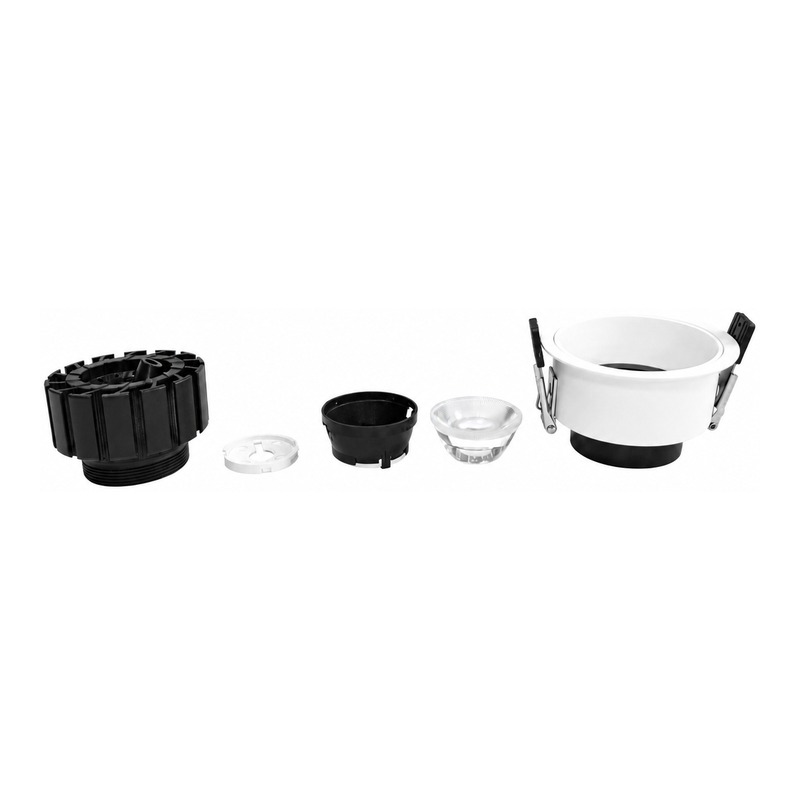

- SKD kit: housing + optical parts + springs
ECOLEDKIT 6215 — Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ECOLEDKIT 6215 |
| Type | Round Recessed |
| Heat Sink Material | Aluminum Profile |
| Optics | Lens |
| Beam Angle Options | 15°-60° |
| Face Diameter Range | 63-108mm |
| Cutout Size Range | 55-95mm |
| Housing Height Range | 83-145mm |
| COB Power Range | 10-40W |
| IP Rating | IP20 (indoor) |
| LED Compatibility | COB LED only |
| Variants | 14 variants |
| Standard Colors | White / Black (custom colors available) |
| Mounting Hardware | Spring clips + Screws + Fixing clips (included) |
| MOQ | 100 sets (50 sets negotiable) |
FAQ
Q: What driver fits the ECO-LED-6215?
A: Almost any LED driver that matches the wattage works. Tell us your driver brand and model and we will confirm fit.
Q: Does the kit include the LED and driver?
A: No – it ships as an SKD kit with housing, optical parts and springs, so you install your own COB LED and driver.
Q: What cutout sizes does it fit?
A: Cutout range is 55 and 95; tell us your project size and we will confirm the right option.
Q: What beam angles are available?
A: 15° / 24° / 36° / 60°. Interchangeable lenses keep your stock simple.
Q: What is the MOQ?
A: MOQ is 100 pcs per size. For a first trial order, 50 pcs is also acceptable.
Q: How long is the lead time?
A: We keep partial stock – most orders ship in 5 days (fastest 3 days). For large quantities, the lead time is negotiated case by case.
Why Choose the ECO-LED-6215 Downlight Housing?
In commercial lighting, the housing decides how long your COB and driver survive. A body that cannot shed heat makes the module run hot: lumen output drops and drivers fail early. The ECO-LED-6215 is built from Heatsink: Aluminum Profile so heat leaves the COB fast, even in the hot, humid climate of Southeast Asia.
We supply it as an SKD kit – unassembled parts in a compact carton, finished by your local factory. You get two practical benefits: lower import cost per unit, and faster delivery to your project sites. We already ship these kits to lighting assemblers and importers in 50+ countries.
With 10-12W to 30W and cutouts of 55 至 95, the ECO-LED-6215 covers the most common downlight openings. Spring clips make installation a two-minute job, and the housing works with almost any driver that matches the wattage, so you are never locked into one supplier.
Request a free sample – WhatsApp +86 132 4938 9989 or send an inquiry. 50+ countries served.
