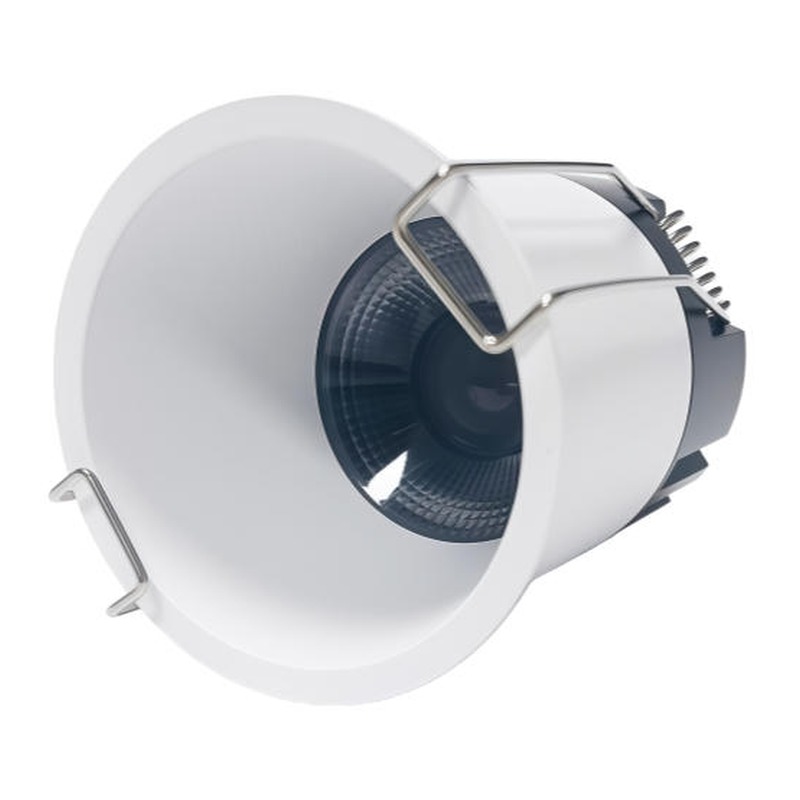

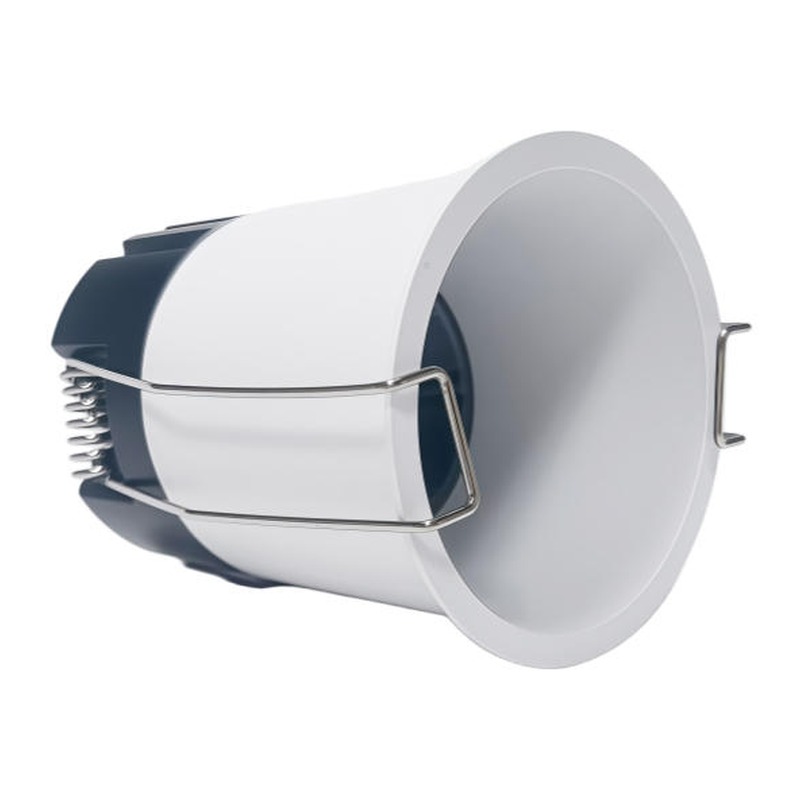

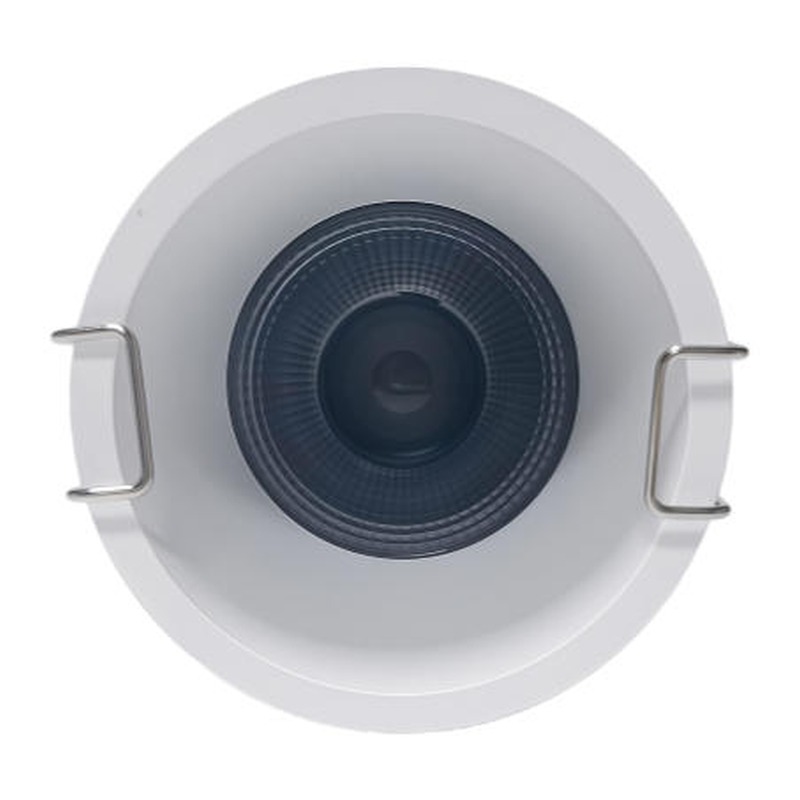

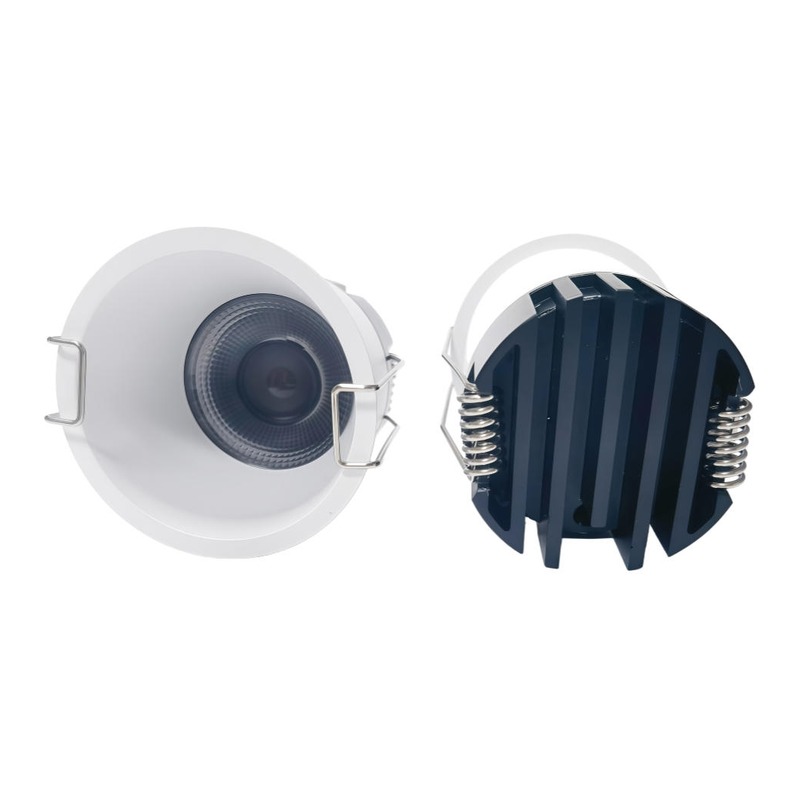

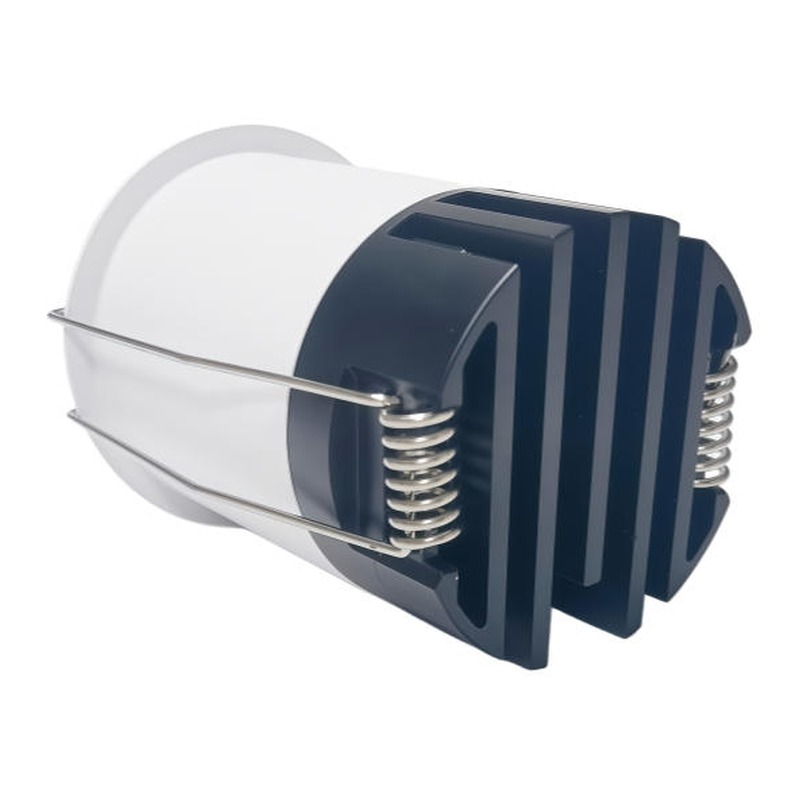

4″ Round COB LED Downlight Housing Kit (SKD)
The ECO-LED-6101 is a 4-inch round LED downlight housing SKD kit engineered for commercial projects in tropical markets. Machined from ADC12 die-cast aluminum, the housing draws heat away from the LED board and driver to keep junction temperature stable – even in the summer heat of Singapore, Bangkok and Jakarta. Supplied as a semi-knocked-down kit, it arrives unassembled in a compact carton: your local factory adds the COB LED and driver, then assembles and sells under your own brand. Result: lower import duty per unit, faster local delivery, and full control over your LED and driver choices.
ECO-LED-6101
IP20
4″ Round LED Downlight Housing Kit
Specifications
| Power | Face Ø | Cutout | Height | Beam Angle | Trim Color |
|---|---|---|---|---|---|
| 9W | 62mm | 55mm | 78mm | Lens 24°/36°/55° | Optional Sand White / Sand Black |
| 12W | 72mm | 65mm | 78mm | Lens 24°/36°/55° | Optional Sand White / Sand Black |
| 15W | 82mm | 75mm | 80mm | Lens 24°/36°/55° | Optional Sand White / Sand Black |
| 20W | 105mm | 95mm | 88mm | Lens 24°/36°/55° | Optional Sand White / Sand Black |
| 25W | 115mm | 105mm | 93mm | Lens 24°/36°/50° | Optional Sand White / Sand Black |
General
| Model | ECO-LED-6101 |
| Shape | Round |
| Housing Material | Die-cast Aluminum (Heatsink + Trim Ring) |
| IP Rating | IP20 (Indoor) |
| Bracket | 1304/020/1507 |
| Includes | Aluminum housing parts, optical parts, springs |
H2-1 For Southeast Asian Commercial Projects
Built for hotels, malls, offices and showrooms across Southeast Asia and the Middle East, the 6101 covers the most common commercial downlight openings. Five power options from 9W to 25W and cutout sizes from Ø55mm to Ø105mm fit standard suspended and concrete ceilings – one housing platform, several light distributions.
H2-2 Engineered to Beat Tropical Heat
Heat is the number one enemy of LED downlights in hot, humid climates. When a fixture runs hot day after day, lumen output drops and driver life shortens. The 6101 body is ADC12 die-cast aluminum (96 W/m-K): it pulls heat away from the COB and driver, keeping the junction temperature stable and protecting your warranty record.
H2-3 Import Duty Savings with SKD
Because the 6101 ships as a housing kit – without the LED and driver – it typically clears customs at a lower duty rate than a finished luminaire in many markets. Your local factory completes assembly, which also shortens last-mile delivery to your project sites. Ask us for the duty classification document for your country.
H2-4 Works with Your Own COB & Driver
You are never locked into one supplier. The 6101 accepts almost any COB LED and driver that matches the wattage – tell us your driver brand and model and we will confirm fit. Choose sand white or sand black trim, or mix both in one order. OEM/ODM with custom packaging is available.
Key Features
- ADC12 die-cast aluminum housing for stable heat dissipation (96 W/m-K)
- SKD kit: housing + optics + spring clips – you add your own COB and driver
- Tool-free spring clip installation, fits standard Ø55-105mm cutouts
- Interchangeable lens beam angles: 24° / 36° / 55°
- IP20 rated for indoor dry locations
- 5 power variants 9-25W, sand white / sand black trim, MOQ from 50 sets
ECOLEDKIT 6101 — Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ECOLEDKIT 6101 |
| Type | Round Recessed |
| Heat Sink Material | Die-cast Aluminum (ADC12) |
| Optics | Lens |
| Beam Angle Options | 24°/36°/55° |
| Face Diameter Range | 62-115mm |
| Cutout Size Range | 55-105mm |
| Housing Height Range | 78-93mm |
| COB Power Range | 9-25W |
| IP Rating | IP20 (indoor) |
| LED Compatibility | COB LED only |
| Variants | 5 variants |
| Standard Colors | White / Black (custom colors available) |
| Mounting Hardware | Spring clips + Screws + Fixing clips (included) |
| MOQ | 100 sets (50 sets negotiable) |
FAQ
Q: What driver fits the ECO-LED-6101?
A: Almost any LED driver that matches the wattage works. Tell us your driver brand and model and we will confirm fit.
Q: Does the kit include the LED and driver?
A: No – it ships as an SKD kit with housing, optical parts and springs, so you install your own COB LED and driver.
Q: What cutout sizes does it fit?
A: Cutout range is Ø55mm to Ø105mm; the most common is Ø75mm for 4-inch kits.
Q: Can I mix white and black trims in one order?
A: Yes, sand white and sand black trims can be mixed in the same order.
Q: What is the MOQ?
A: MOQ is 100 pcs per size. For a first trial order, 50 pcs is also acceptable.
Q: How long is the lead time?
A: We keep partial stock – most orders ship in 5 days (fastest 3 days). For large quantities, the lead time is negotiated case by case.
Why Choose the ECO-LED-6101 Downlight Housing?
In commercial projects across Southeast Asia, heat is the number one enemy of LED downlights. When fixtures run hot day after day, lumen output drops and driver life shortens. The ECO-LED-6101 solves this at the housing level: its ADC12 die-cast aluminum body draws heat away from the driver and LED board, keeping the junction temperature stable – even in the summer heat of Singapore, Bangkok and Jakarta.
We supply it as an SKD kit. The housing arrives unassembled in a compact carton, and your local factory finishes the assembly. You get two practical benefits: lower import cost per unit, and faster local delivery to your project sites. We already ship these kits to lighting assemblers and importers in 50+ countries.
The 4-inch form factor – 82 mm outer diameter, 75 mm cutout – fits most standard commercial downlight openings. Choose a white or black trim, or mix both in one order. Spring clips make installation a two-minute job, and the housing works with almost any driver that matches the wattage, so you are never locked into one supplier.
