ECO-LED-6216
IP20

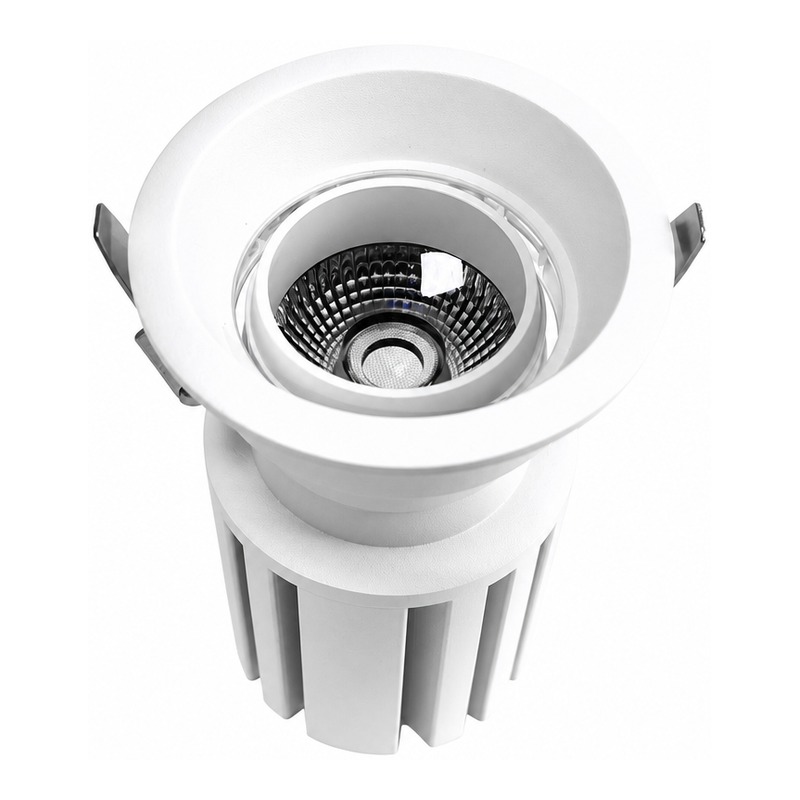

Deep Anti-Glare LED Downlight Housing Kit 35W (Cold-Forged)
The ECO-LED-6216 is a deep anti-glare LED downlight housing kit with a cold-forged aluminum heatsink, rated 30-35W. The deep cup keeps UGR below 19 while the cold-forged body handles the wattage – comfort and power in one round kit.
Specifications
| Power | Face Ø | Cutout | Height | Beam Angle | Trim Color |
|---|---|---|---|---|---|
| 30-35W | 88mm | 75-80mm | 138mm | Lens 15°/24°/36°/55° | Optional White / Black |
| 30-35W | 110mm | 95-100mm | 125mm | Lens 15°/24°/36°/55° | Optional White / Black |
| 30-35W | 128mm | 105-120mm | 127mm | Lens 15°/24°/36°/55° | Optional White / Black |
General
| Model | ECO-LED-6216 |
| Shape | Round |
| Housing Material | Die-cast Aluminum (Heatsink + Trim Ring) |
| IP Rating | IP20 (Indoor) |
| Bracket | 020/1507/030/1816 |

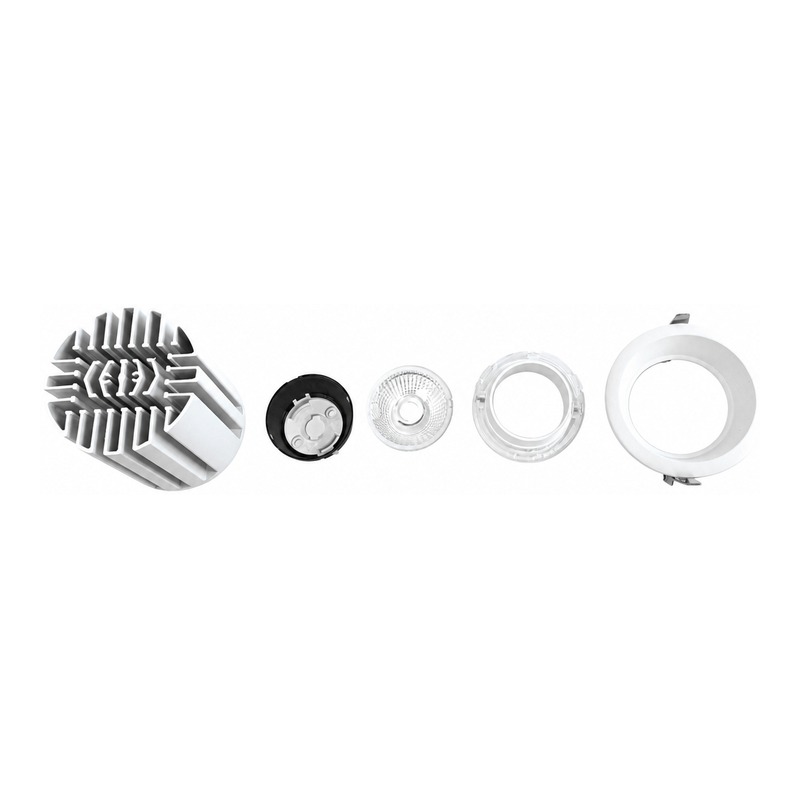

| Includes | Round deep anti-glare type; aluminum housing parts, optical parts, springs |
For Glare-Sensitive Commercial Spaces
Boardrooms, galleries and premium retail need low glare at high output. The 6216 delivers 30-35W with a deep anti-glare cup.

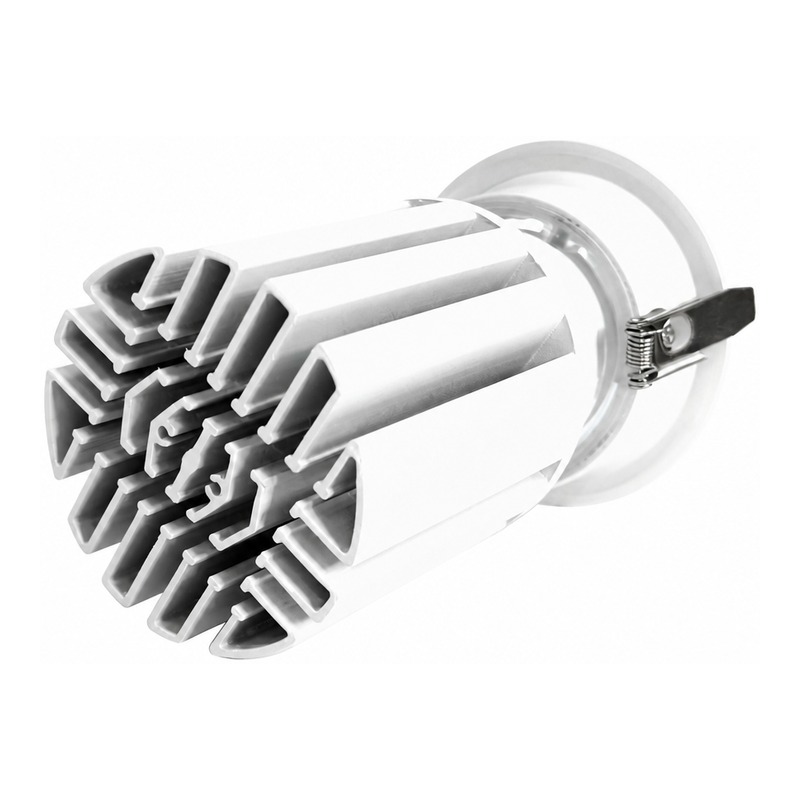

Cold-Forged Heatsink for 35W Comfort
Cold-forged aluminum gives dense thermal paths, keeping the 35W COB module cool while the deep cup hides the source.
Import Duty Savings on the 6216 SKD Kit
Because the 6216 ships as a housing kit – without the LED and driver – it typically clears customs at a lower duty rate than a finished luminaire in many markets. Your local factory completes assembly, which also shortens last-mile delivery to your project sites.
Works with Your Own COB & Driver
You are never locked into one supplier. The 6216 accepts almost any COB LED and driver that matches the wattage – tell us your driver brand and model and we will confirm fit. OEM/ODM with custom packaging is available.
Key Features
- Deep anti-glare cup, UGR below 19
- Cold-forged aluminum heatsink, 35W
- Cutouts from 75-80 to 105-120 mm
- Lens beam angles: 15° / 24° / 36° / 55°
- White / black trim
ECOLEDKIT 6216 — Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ECOLEDKIT 6216 |
| Type | Round Deep Anti-Glare |
| Heat Sink Material | Cold-Forged Aluminum |
| Optics | Lens |
| Beam Angle Options | 15°-55° |
| Face Diameter Range | 88-128mm |
| Cutout Size Range | 75-120mm |
| Housing Height Range | 125-138mm |
| COB Power Range | 30-35W |
| IP Rating | IP20 (indoor) |
| LED Compatibility | COB LED only |
| Variants | 3 variants |
| Standard Colors | White / Black (custom colors available) |
| Mounting Hardware | Spring clips + Screws + Fixing clips (included) |
| MOQ | 100 sets (50 sets negotiable) |
FAQ
Q: What driver fits the ECO-LED-6216?
A: Almost any LED driver that matches the wattage works. Tell us your driver brand and model and we will confirm fit.
Q: Does the kit include the LED and driver?
A: No – it ships as an SKD kit with housing, optical parts and springs, so you install your own COB LED and driver.
Q: What cutout sizes does it fit?
A: Cutout range is 75-80 and 105-120; tell us your project size and we will confirm the right option.
Q: What beam angles are available?
A: 15° / 24° / 36° / 55°. Interchangeable lenses keep your stock simple.
Q: What is the MOQ?
A: MOQ is 100 pcs per size. For a first trial order, 50 pcs is also acceptable.
Q: How long is the lead time?
A: We keep partial stock – most orders ship in 5 days (fastest 3 days). For large quantities, the lead time is negotiated case by case.
Why Choose the ECO-LED-6216 Downlight Housing?
In commercial lighting, the housing decides how long your COB and driver survive. A body that cannot shed heat makes the module run hot: lumen output drops and drivers fail early. The ECO-LED-6216 is built from Heatsink: Cold-Forged Aluminum so heat leaves the COB fast, even in the hot, humid climate of Southeast Asia.
We supply it as an SKD kit – unassembled parts in a compact carton, finished by your local factory. You get two practical benefits: lower import cost per unit, and faster delivery to your project sites. We already ship these kits to lighting assemblers and importers in 50+ countries.
With 30-35W to 30-35W and cutouts of 75-80 至 105-120, the ECO-LED-6216 covers the most common downlight openings. Spring clips make installation a two-minute job, and the housing works with almost any driver that matches the wattage, so you are never locked into one supplier.
Request a free sample – WhatsApp +86 132 4938 9989 or send an inquiry. 50+ countries served.
