ECO-LED-6105
IP20

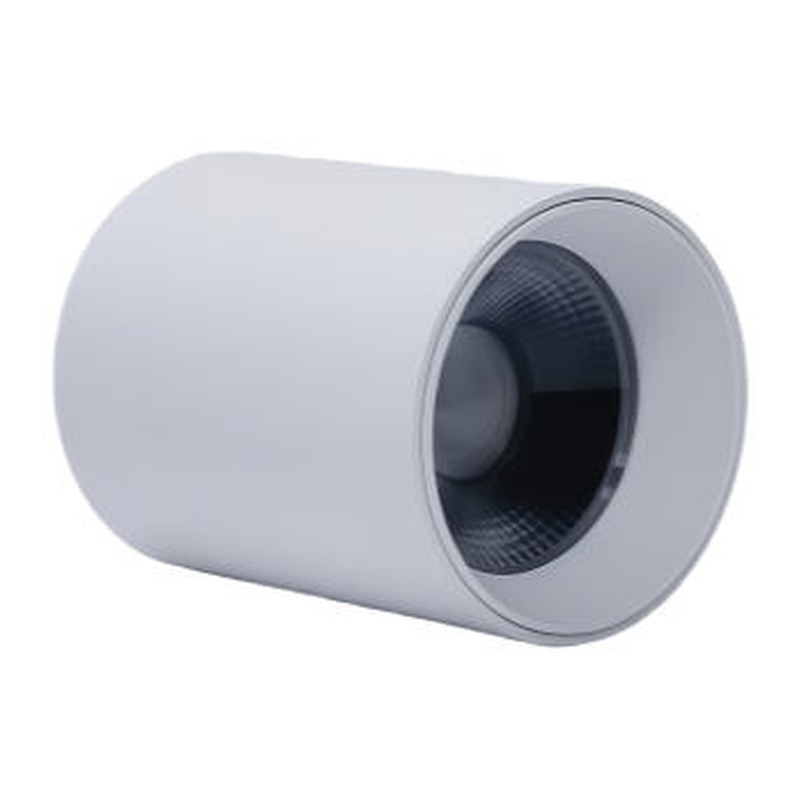

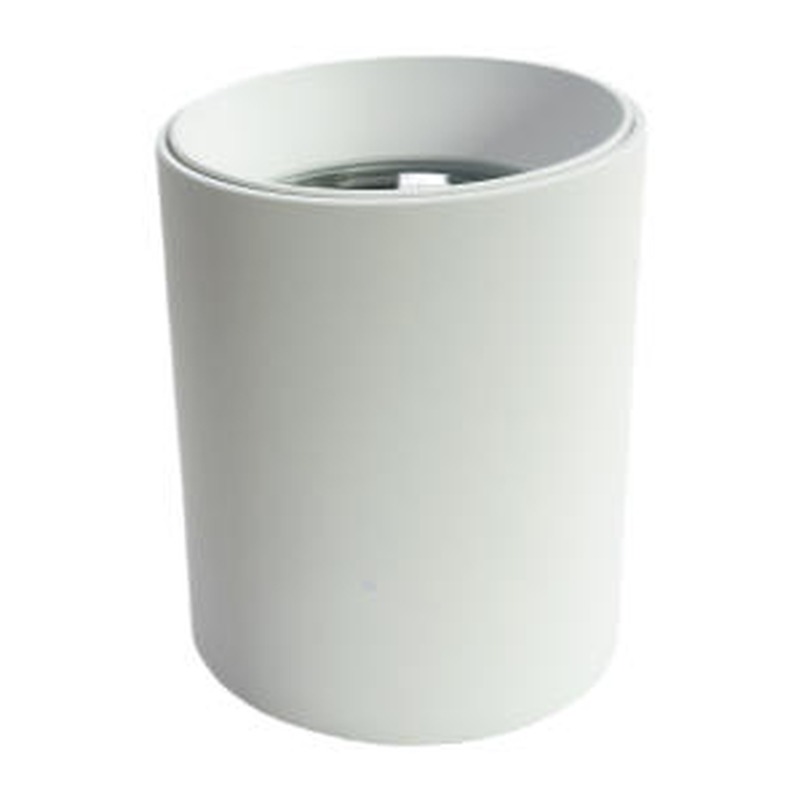

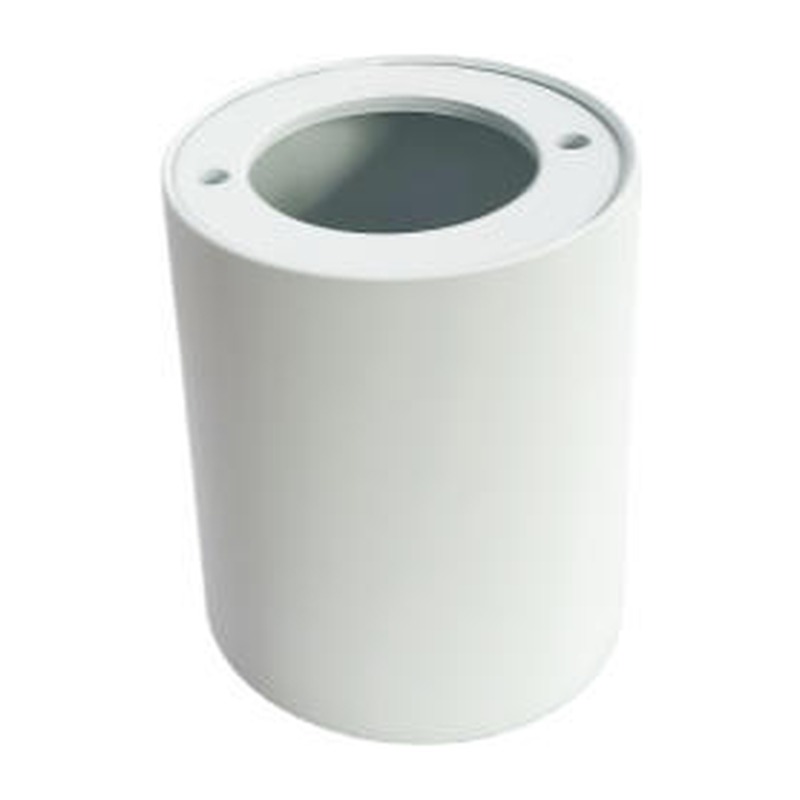

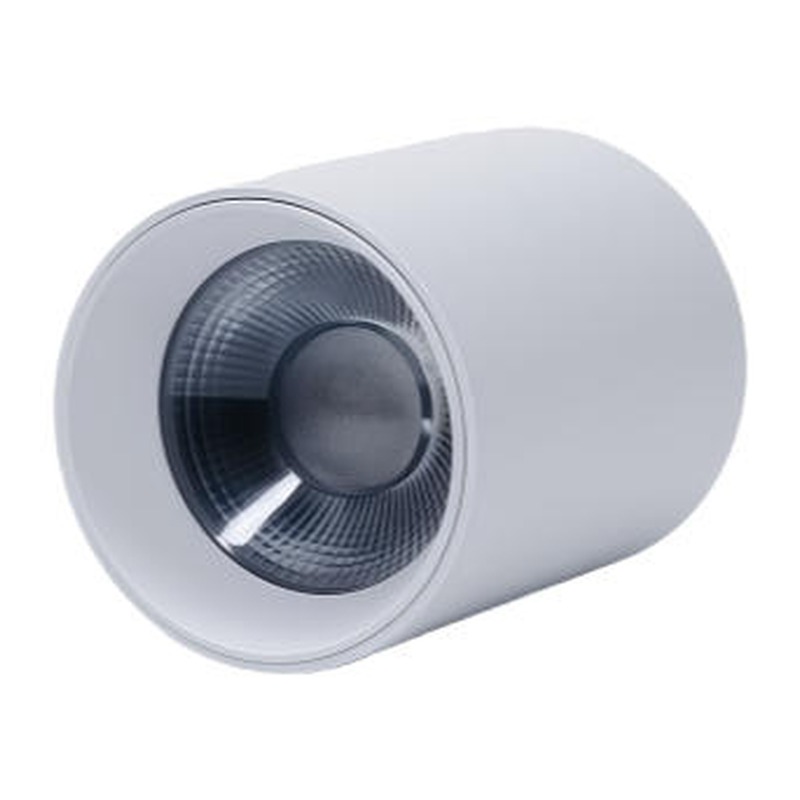

2.5″ Surface-Mounted LED Downlight Housing Kit (No Cutout)
The ECO-LED-6105 is a surface-mounted LED downlight housing kit – no ceiling cutout is needed. It mounts directly onto solid ceilings, wood panels and concrete slabs, covering 5W to 12W with face diameters from 45 to 85 mm. Supplied as SKD parts for local assembly.
Specifications
| Power | Face Ø | Cutout | Height | Beam Angle | Trim Color |
|---|---|---|---|---|---|
| 5W | 45mm | Surface Mountedmm | 52mm | Lens 15°/24°/36°/55° | Optional Sand White / Sand Black |
| 7W | 55mm | Surface Mountedmm | 67mm | Lens 15°/24°/36°/55° | Optional Sand White / Sand Black |
| 9W | 65mm | Surface Mountedmm | 67mm | Lens 24°/36°/55° | Optional Sand White / Sand Black |
| 12W | 75mm | Surface Mountedmm | 75mm | Lens 24°/36°/55° | Optional Sand White / Sand Black |
| 12W | 85mm | Surface Mountedmm | 86mm | Lens 24°/36°/55° | Optional Sand White / Sand Black |
| 15W | 95mm | Surface Mountedmm | 87mm | Lens 36°/50° | Optional Sand White / Sand Black |
General
| Model | ECO-LED-6105 |
| Shape | Round |
| Housing Material | Die-cast Aluminum (Heatsink + Trim Ring) |
| IP Rating | IP20 (Indoor) |
| Bracket | 1304/020 |
| Includes | Aluminum housing parts, optical parts, springs |
For Renovations & Solid Ceilings
Where recessing is impossible – solid concrete, exposed wood, or rental spaces – the 6105 mounts on the surface and still looks like a professional downlight. Six sizes cover 5W to 15W.
Die-Cast Heatsink on the Outside
The die-cast aluminum body sits outside the ceiling, so heat dissipates into the room air naturally – no insulation trap, no derating.
Import Duty Savings on the 6105 SKD Kit
Because the 6105 ships as a housing kit – without the LED and driver – it typically clears customs at a lower duty rate than a finished luminaire in many markets. Your local factory completes assembly, which also shortens last-mile delivery to your project sites.
Works with Your Own COB & Driver
You are never locked into one supplier. The 6105 accepts almost any COB LED and driver that matches the wattage – tell us your driver brand and model and we will confirm fit. OEM/ODM with custom packaging is available.
Key Features
- No ceiling cutout needed – surface mounted
Fits solid ceilings, wood panels and concrete slabs
Die-cast aluminum body for natural heat dissipation
Six sizes from 45 to 85 mm face diameter
5W to 12W power options
SKD kit: housing + optical parts + springs
ECOLEDKIT 6105 — Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ECOLEDKIT 6105 |
| Type | Round Surface-Mounted |
| Heat Sink Material | Die-cast Aluminum (ADC12) |
| Optics | Lens |
| Beam Angle Options | 15°-55° |
| Face Diameter Range | 45-85mm |
| Cutout Size Range | Surface (no cutout) |
| Housing Height Range | 52-86mm |
| COB Power Range | 5-12W |
| IP Rating | IP20 (indoor) |
| LED Compatibility | COB LED only |
| Variants | 6 variants |
| Standard Colors | White / Black (custom colors available) |
| Mounting Hardware | Spring clips + Screws + Fixing clips (included) |
| MOQ | 100 sets (50 sets negotiable) |
FAQ
Q: What driver fits the ECO-LED-6105?
A: Almost any LED driver that matches the wattage works. Tell us your driver brand and model and we will confirm fit.
Q: Does the kit include the LED and driver?
A: No – it ships as an SKD kit with housing, optical parts and springs, so you install your own COB LED and driver.
Q: What cutout sizes does it fit?
A: Cutout range is Surface Mounted; tell us your project size and we will confirm the right option.
Q: What beam angles are available?
A: 15° / 24° / 36° / 55°. Interchangeable lenses keep your stock simple.
Q: What is the MOQ?
A: MOQ is 100 pcs per size. For a first trial order, 50 pcs is also acceptable.
Q: How long is the lead time?
A: We keep partial stock – most orders ship in 5 days (fastest 3 days). For large quantities, the lead time is negotiated case by case.
Why Choose the ECO-LED-6105 Downlight Housing?
In commercial lighting, the housing decides how long your COB and driver survive. A body that cannot shed heat makes the module run hot: lumen output drops and drivers fail early. The ECO-LED-6105 is built from Heatsink: Die-cast Aluminum so heat leaves the COB fast, even in the hot, humid climate of Southeast Asia.
We supply it as an SKD kit – unassembled parts in a compact carton, finished by your local factory. You get two practical benefits: lower import cost per unit, and faster delivery to your project sites. We already ship these kits to lighting assemblers and importers in 50+ countries.
With 5W to 15W and cutouts of 明装免开孔（Surface Mounted）, the ECO-LED-6105 covers the most common downlight openings. Spring clips make installation a two-minute job, and the housing works with almost any driver that matches the wattage, so you are never locked into one supplier.
Request a free sample – WhatsApp +86 132 4938 9989 or send an inquiry. 50+ countries served.
