ECO-LED-6203
IP20
2.5″ Deep Anti-Glare LED Downlight Housing Kit 20W
The ECO-LED-6203 is a compact 2.5-inch deep anti-glare LED downlight housing kit with a cold-forged aluminum heatsink and a silver heatsink finish. At only 64 mm face diameter and a 55 mm cutout, it delivers up to 20W with UGR below 19 – small size, low glare.
Specifications
| Power | Face Ø | Cutout | Height | Beam Angle | Trim Color |
|---|---|---|---|---|---|
| 10W | 64mm | 55mm | 85mm | Lens 10°/15°/24°/36°/60 | White Heatsink: Silver |
| 15W | 64mm | 55mm | 106mm | Lens 10°/15°/24°/36°/60 | White Heatsink: Silver |
| 12-15W | 84mm | 75mm | 93mm | Lens 10°/15°/24°/36°/60 | White Heatsink: Silver |
| 15-20W | 84mm | 75mm | 120mm | Lens 10°/15°/24°/36°/60 | White Heatsink: Silver |
General
| Model | ECO-LED-6203 |
| Shape | Round |
| Housing Material | Die-cast Aluminum (Heatsink + Trim Ring) |
| IP Rating | IP20 (Indoor) |
| Bracket | 020/1507 |
| Includes | Anti-glare cup: optional black/white/bright silver/gunmetal; aluminum housing parts, optical parts, springs |
For Compact Anti-Glare Accent Lighting
Retail display cases, corridors and compact hotel rooms need small openings with comfortable light. The 6203 fits a 55 mm cutout and steps from 10W to 20W.
Cold-Forged Heatsink, Silver Finish

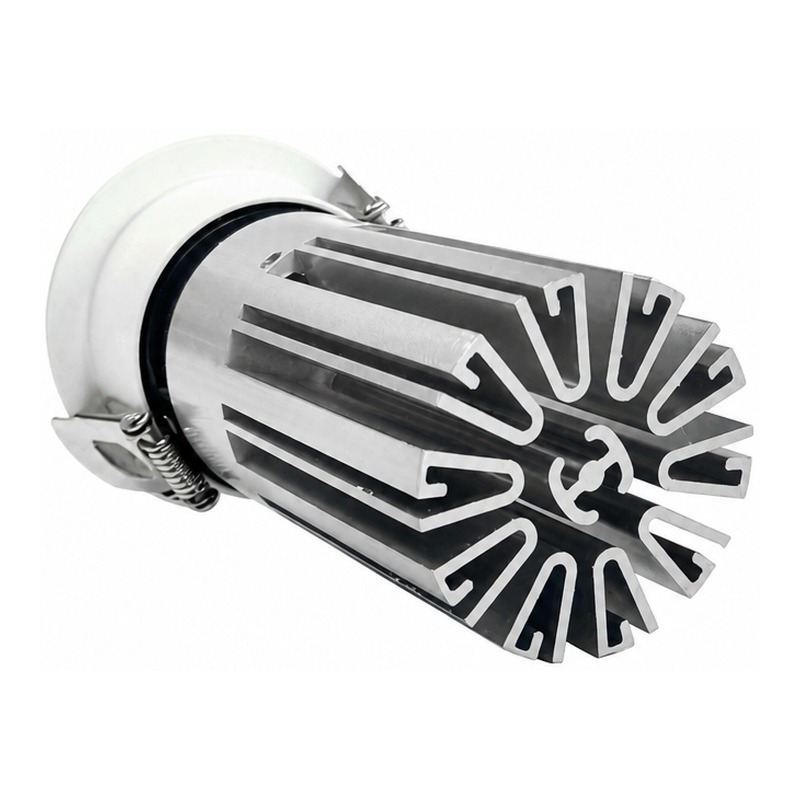

Cold-forged aluminum keeps the 6203 cool even at 20W in a 64 mm body, and the silver heatsink matches modern interior finishes.
Import Duty Savings on the 6203 SKD Kit
Because the 6203 ships as a housing kit – without the LED and driver – it typically clears customs at a lower duty rate than a finished luminaire in many markets. Your local factory completes assembly, which also shortens last-mile delivery to your project sites.
Works with Your Own COB & Driver
You are never locked into one supplier. The 6203 accepts almost any COB LED and driver that matches the wattage – tell us your driver brand and model and we will confirm fit. OEM/ODM with custom packaging is available.
Key Features
- 5-inch compact body, 55 mm cutout
- Deep anti-glare cup, UGR below 19
- Cold-forged aluminum heatsink, silver finish
- Lens beam angles: 10° to 60°
- 10W to 20W power range
- SKD kit: housing + optical parts + springs
ECOLEDKIT 6203 — Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ECOLEDKIT 6203 |
| Type | Round Deep Anti-Glare |
| Heat Sink Material | Cold-Forged Aluminum |
| Optics | Lens |
| Beam Angle Options | 10°-60° |
| Face Diameter Range | 64-84mm |
| Cutout Size Range | 55-75mm |
| Housing Height Range | 85-120mm |
| COB Power Range | 10-20W |
| IP Rating | IP20 (indoor) |
| LED Compatibility | COB LED only |
| Variants | 4 variants |
| Standard Colors | White / Black (custom colors available) |
| Mounting Hardware | Spring clips + Screws + Fixing clips (included) |
| MOQ | 100 sets (50 sets negotiable) |
FAQ
Q: What driver fits the ECO-LED-6203?
A: Almost any LED driver that matches the wattage works. Tell us your driver brand and model and we will confirm fit.
Q: Does the kit include the LED and driver?

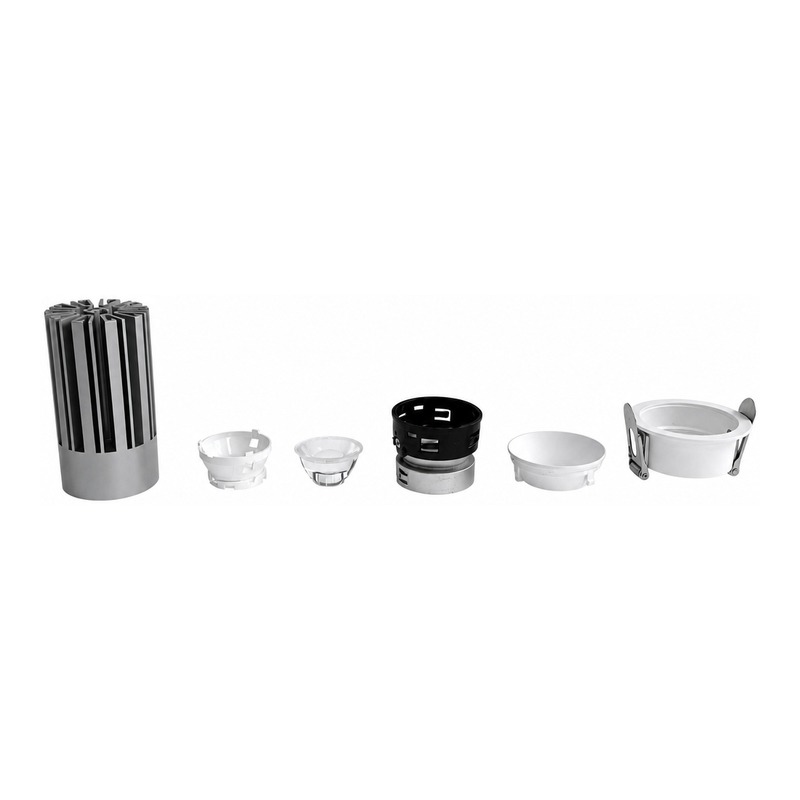

A: No – it ships as an SKD kit with housing, optical parts and springs, so you install your own COB LED and driver.
Q: What cutout sizes does it fit?
A: Cutout range is 55 至 75; tell us your project size and we will confirm the right option.
Q: What beam angles are available?
A: 10° / 15° / 24° / 36° / 60°. Interchangeable lenses keep your stock simple.
Q: What is the MOQ?
A: MOQ is 100 pcs per size. For a first trial order, 50 pcs is also acceptable.
Q: How long is the lead time?
A: We keep partial stock – most orders ship in 5 days (fastest 3 days). For large quantities, the lead time is negotiated case by case.
Why Choose the ECO-LED-6203 Downlight Housing?
In commercial lighting, the housing decides how long your COB and driver survive. A body that cannot shed heat makes the module run hot: lumen output drops and drivers fail early. The ECO-LED-6203 is built from Heatsink: Cold-Forged Aluminum (silver) so heat leaves the COB fast, even in the hot, humid climate of Southeast Asia.
We supply it as an SKD kit – unassembled parts in a compact carton, finished by your local factory. You get two practical benefits: lower import cost per unit, and faster delivery to your project sites. We already ship these kits to lighting assemblers and importers in 50+ countries.
With 10W to 15-20W and cutouts of 55 至 75, the ECO-LED-6203 covers the most common downlight openings. Spring clips make installation a two-minute job, and the housing works with almost any driver that matches the wattage, so you are never locked into one supplier.
Request a free sample – WhatsApp +86 132 4938 9989 or send an inquiry. 50+ countries served.
