ECO-LED-6205

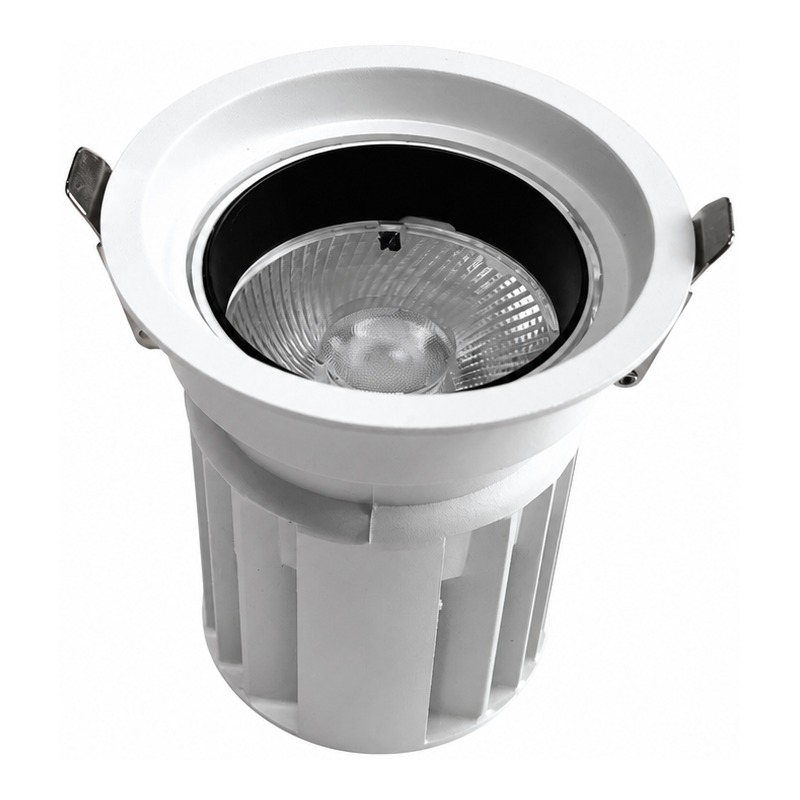

6-inch Aluminum LED Downlight Housing Kit Model 6205, white-black Finish, High Heat Dissipation Ceiling Light Shell

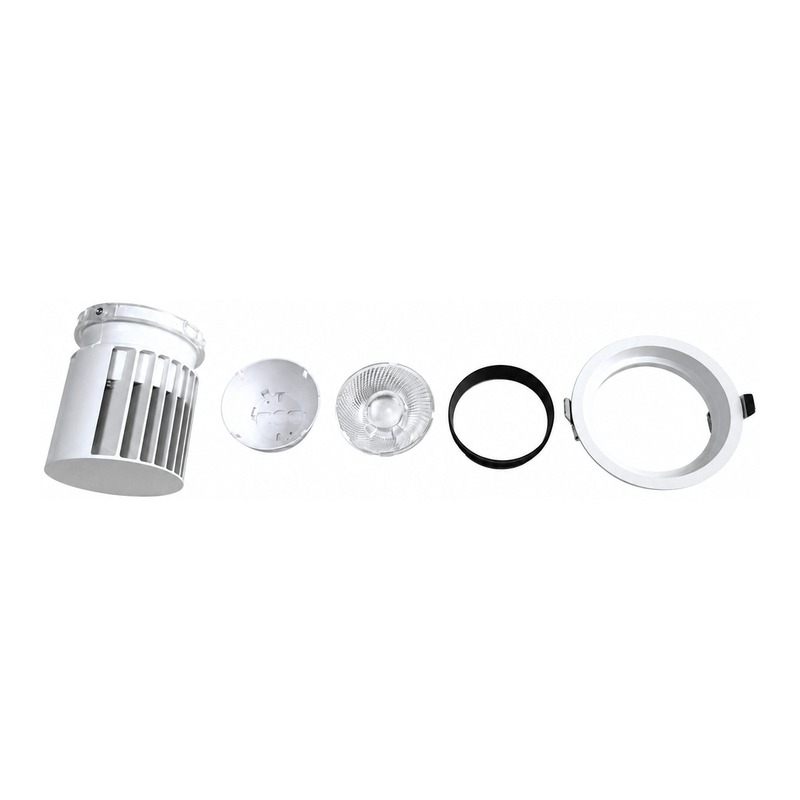

6inch Aluminum LED Downlight Housing Kit Model 6205, round 40w, Angle 1 View

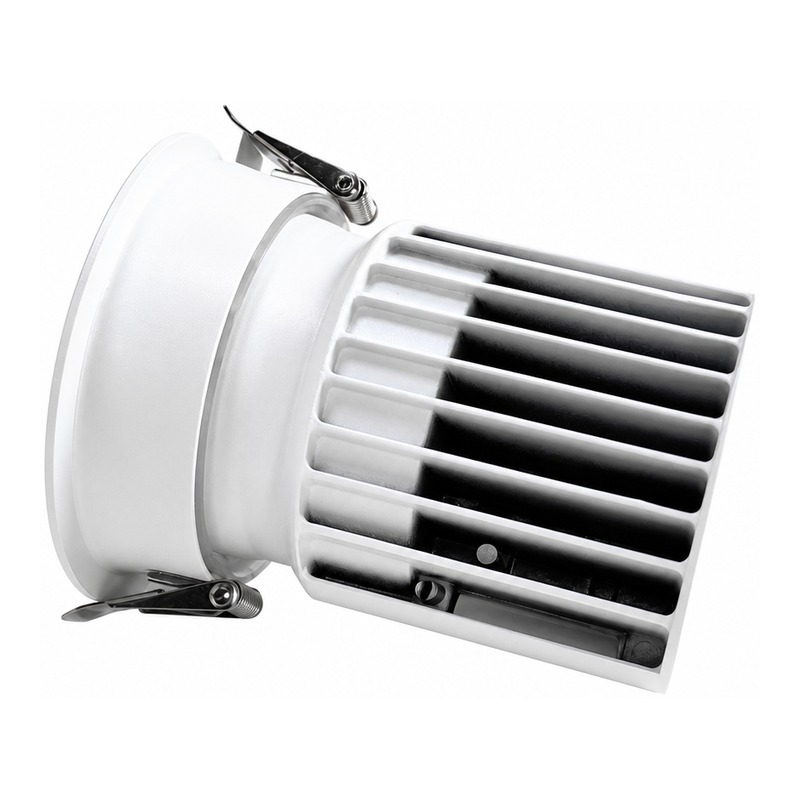

6inch Aluminum LED Downlight Housing Kit Model 6205, round 40w, Angle 2 View

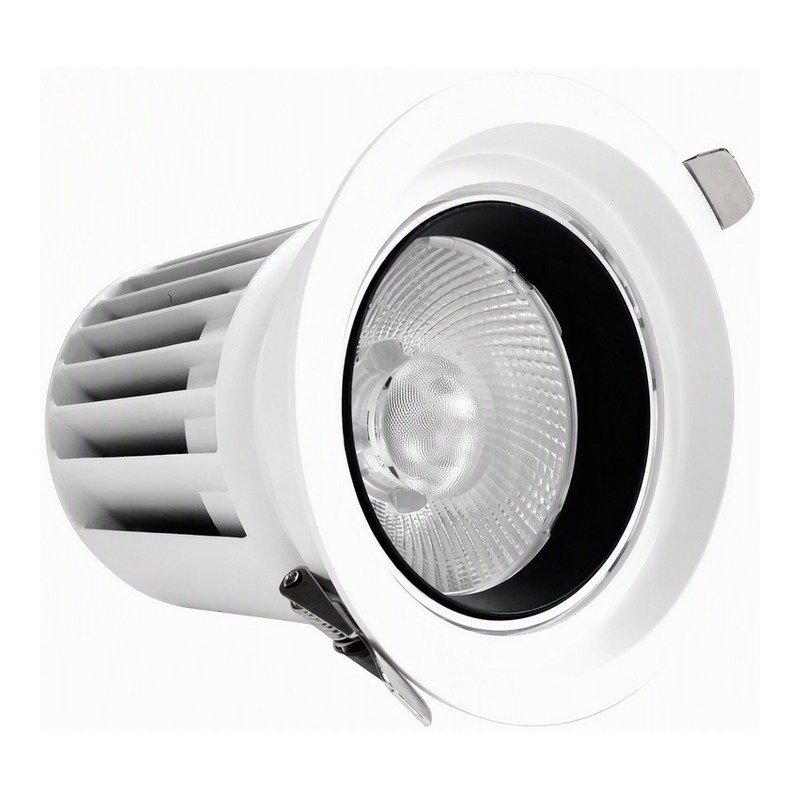

6inch Aluminum LED Downlight Housing Kit Model 6205, round 40w, Angle 3 View

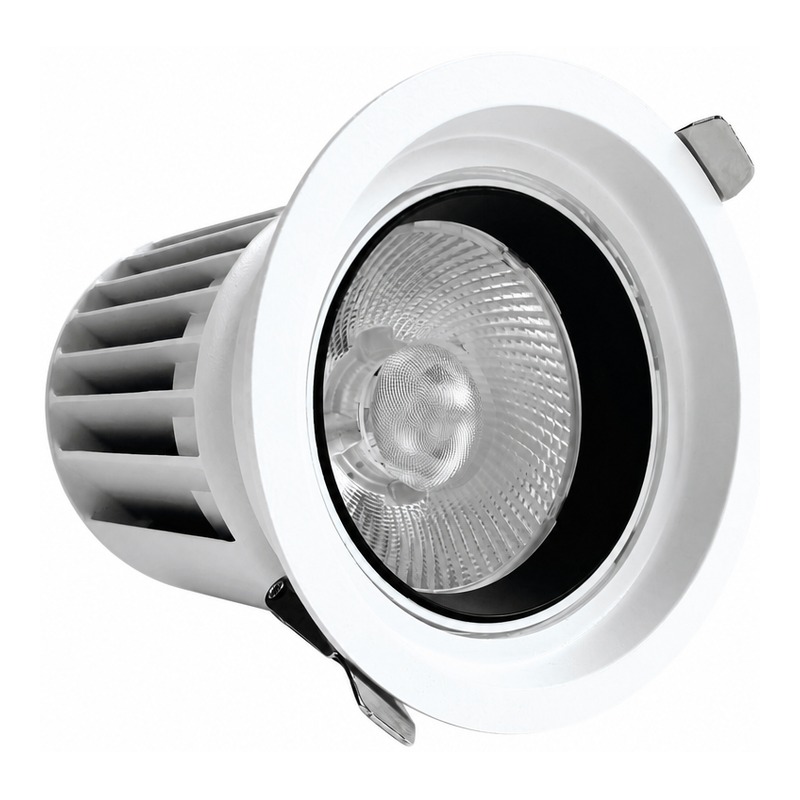

6inch Aluminum LED Downlight Housing Kit Model 6205, round 40w, Angle 4 View

ECO-LED-6205

IP20

6″ Round LED Downlight Housing Kit

Specifications

Power Face Ø Cutout Height Beam Angle Trim Color
30-32W 108mm 95-100mm 118mm Lens 15°/24°/36°/60° White
Heatsink: White
35-40W 138mm 115-130mm 120mm Lens 15°/24°/36°/60° White
Heatsink: White

General

Model ECO-LED-6205
Shape Round
Housing Material Die-cast Aluminum (Heatsink + Trim Ring)
IP Rating IP20 (Indoor)
Bracket 020/1507/1816/030
Includes Flat-concave deep anti-glare; aluminum housing parts, optical parts, springs

Key Features

  • ✓ Die-cast aluminum housing for superior heat dissipation
  • ✓ Optional sand white / sand black trim ring finish
  • ✓ Tool-free spring clip installation, fits standard ceiling cutouts
  • ✓ Multiple beam angle options (24°/36°/55°) with interchangeable lens
  • ✓ IP20 rated for indoor dry locations
  • ✓ OEM/ODM available, custom packaging supported

Request Quote
Get Samples

ECOLEDKIT 6205 — Technical Specifications

Parameter Specification
Model ECOLEDKIT 6205
Type Round Shallow Recessed Anti-Glare
Heat Sink Material Die-cast Aluminum (ADC12)
Optics Lens
Beam Angle Options 15°-60°
Face Diameter Range 108-138mm
Cutout Size Range 95-130mm
Housing Height Range 118-120mm
COB Power Range 30-40W
IP Rating IP20 (indoor)
LED Compatibility COB LED only
Variants 2 variants
Standard Colors White / Black (custom colors available)
Mounting Hardware Spring clips + Screws + Fixing clips (included)
MOQ 100 sets (50 sets negotiable)
