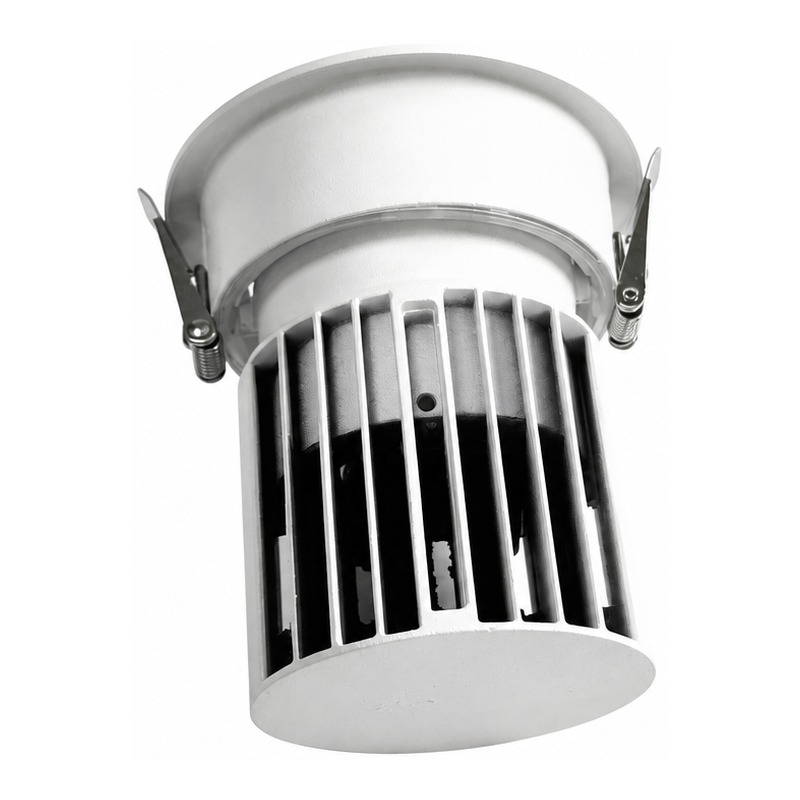

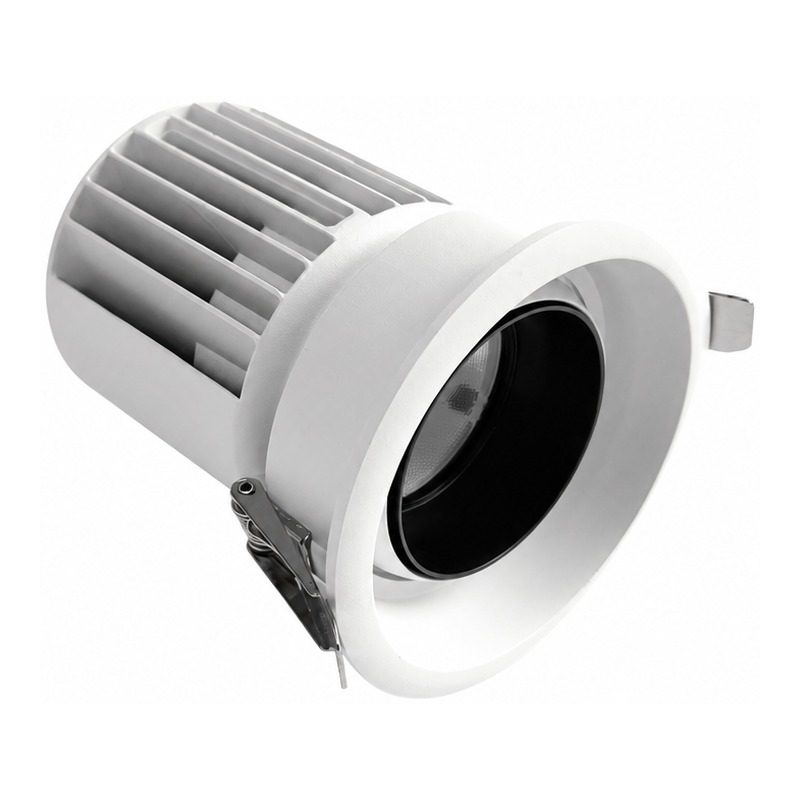

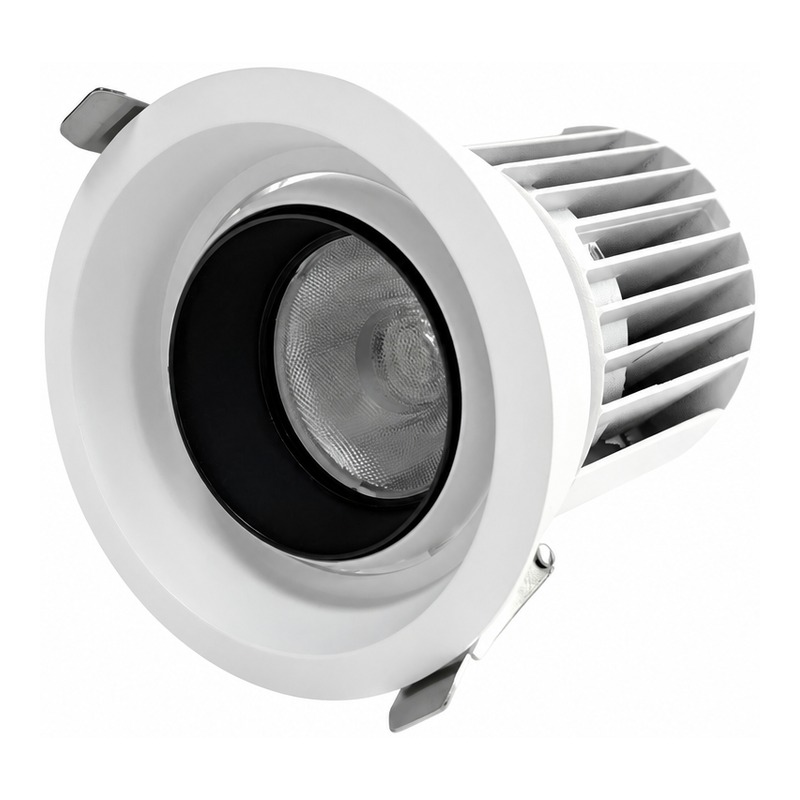

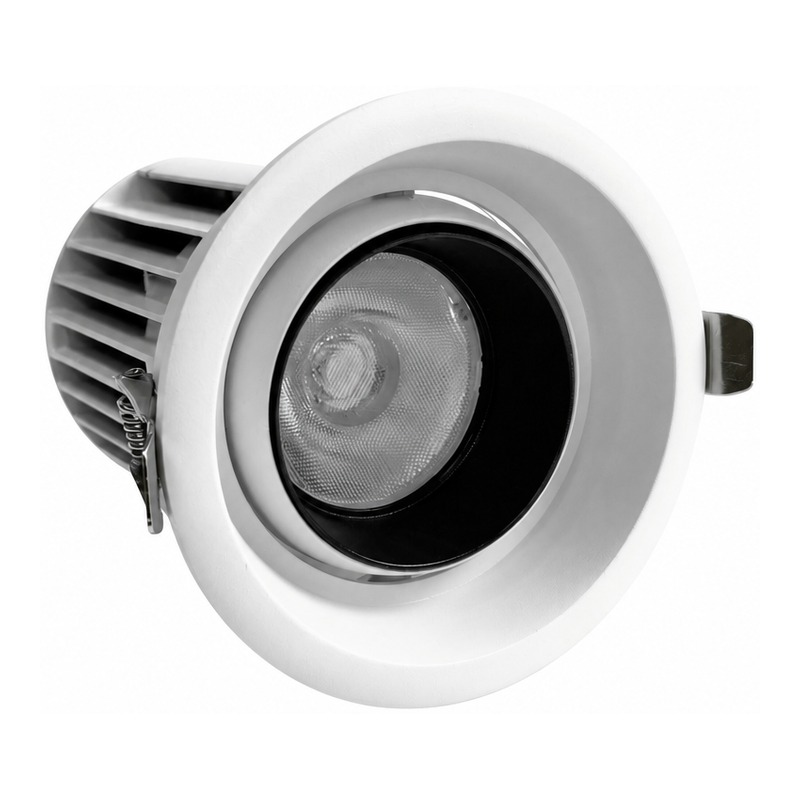

ECO-LED-6206A
IP20
Recessed Deep Anti-Glare LED Downlight Housing Kit (30W)
The ECO-LED-6206A is a recessed deep anti-glare LED downlight housing kit in die-cast aluminum. At 30-32W with cutouts from 95 to 115 mm, the deep cup hides the COB source and keeps UGR low for comfortable commercial lighting.
Specifications
| Power | Face Ø | Cutout | Height | Beam Angle | Trim Color |
|---|---|---|---|---|---|
| 30-32W | 110mm | 95-100mm | 120mm | Lens 15°/24°/36° | White Heatsink: White |
| 30-32W | 128mm | 105-115mm | 122mm | Lens 15°/24°/36° | White Heatsink: White |
General
| Model | ECO-LED-6206A |
| Shape | Round |
| Housing Material | Die-cast Aluminum (Heatsink + Trim Ring) |
| IP Rating | IP20 (Indoor) |
| Bracket | 020/1816/030/1816 |
| Includes | Recessed deep anti-glare; aluminum housing parts, optical parts, springs |
For Deep Recessed Installations
The recessed deep anti-glare cup suits offices, showrooms and corridors where the luminaire sits flush and the source stays hidden.
Die-Cast Heatsink for Stable 30W Output
Die-cast aluminum throughout keeps the 30W COB module cool through long operating hours in warm climates.
Import Duty Savings on the 6206A SKD Kit
Because the 6206A ships as a housing kit – without the LED and driver – it typically clears customs at a lower duty rate than a finished luminaire in many markets. Your local factory completes assembly, which also shortens last-mile delivery to your project sites.
Works with Your Own COB & Driver
You are never locked into one supplier. The 6206A accepts almost any COB LED and driver that matches the wattage – tell us your driver brand and model and we will confirm fit. OEM/ODM with custom packaging is available.
Key Features
- Recessed deep anti-glare cup, low UGR
- Die-cast aluminum heatsink and trim ring
- 30-32W power, cutouts 95-115 mm
- Lens beam angles: 15° / 24° / 36°
- SKD kit: housing + optical parts + springs
- White trim, MOQ from 50 sets
ECOLEDKIT 6206A — Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ECOLEDKIT 6206A |
| Type | Round Deep Anti-Glare |
| Heat Sink Material | Die-cast Aluminum (ADC12) |
| Optics | Lens |
| Beam Angle Options | 15°/24°/36° |
| Face Diameter Range | 110-128mm |
| Cutout Size Range | 95-115mm |
| Housing Height Range | 120-122mm |
| COB Power Range | 30-32W |
| IP Rating | IP20 (indoor) |
| LED Compatibility | COB LED only |
| Variants | 2 variants |
| Standard Colors | White / Black (custom colors available) |
| Mounting Hardware | Spring clips + Screws + Fixing clips (included) |
| MOQ | 100 sets (50 sets negotiable) |
FAQ
Q: What driver fits the ECO-LED-6206A?
A: Almost any LED driver that matches the wattage works. Tell us your driver brand and model and we will confirm fit.
Q: Does the kit include the LED and driver?
A: No – it ships as an SKD kit with housing, optical parts and springs, so you install your own COB LED and driver.
Q: What cutout sizes does it fit?
A: Cutout range is 95-100 amd 105-115; tell us your project size and we will confirm the right option.
Q: What beam angles are available?
A: 15° / 24° / 36°. Interchangeable lenses keep your stock simple.
Q: What is the MOQ?
A: MOQ is 100 pcs per size. For a first trial order, 50 pcs is also acceptable.
Q: How long is the lead time?
A: We keep partial stock – most orders ship in 5 days (fastest 3 days). For large quantities, the lead time is negotiated case by case.
Why Choose the ECO-LED-6206A Downlight Housing?
In commercial lighting, the housing decides how long your COB and driver survive. A body that cannot shed heat makes the module run hot: lumen output drops and drivers fail early. The ECO-LED-6206A is built from Heatsink: Die-cast Aluminum so heat leaves the COB fast, even in the hot, humid climate of Southeast Asia.
We supply it as an SKD kit – unassembled parts in a compact carton, finished by your local factory. You get two practical benefits: lower import cost per unit, and faster delivery to your project sites. We already ship these kits to lighting assemblers and importers in 50+ countries.
With 30-32W to 30-32W and cutouts of 95-100 至 105-115, the ECO-LED-6206A covers the most common downlight openings. Spring clips make installation a two-minute job, and the housing works with almost any driver that matches the wattage, so you are never locked into one supplier.
Request a free sample – WhatsApp +86 132 4938 9989 or send an inquiry. 50+ countries served.
