ECO-LED-6211
IP20

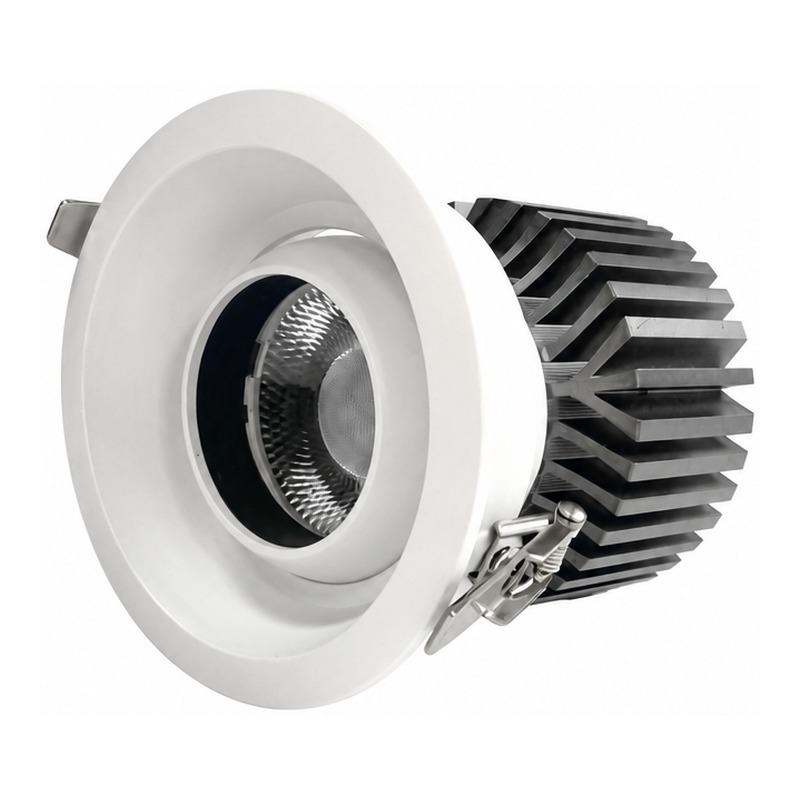

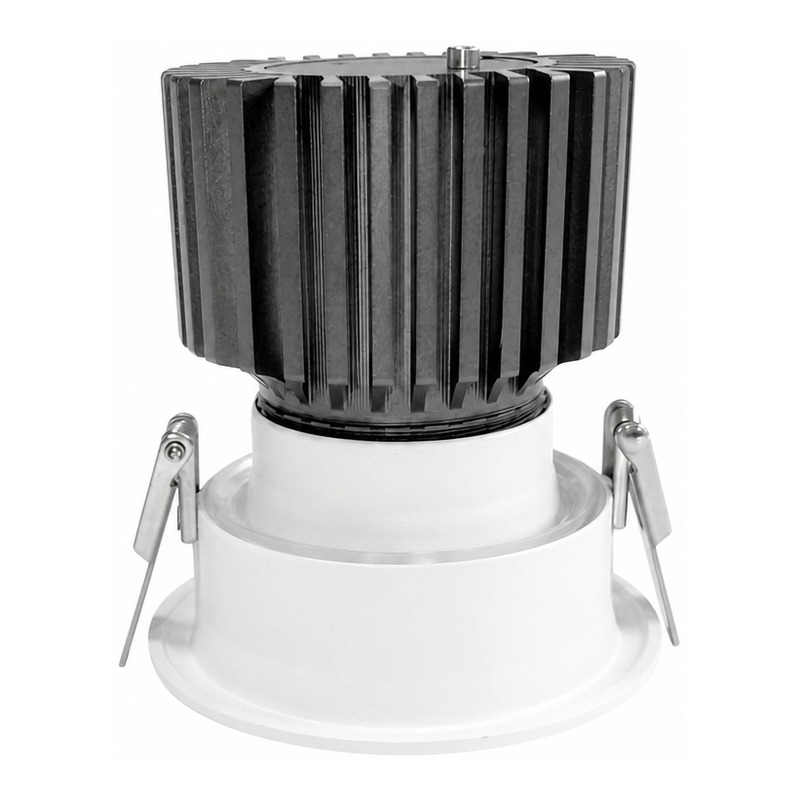

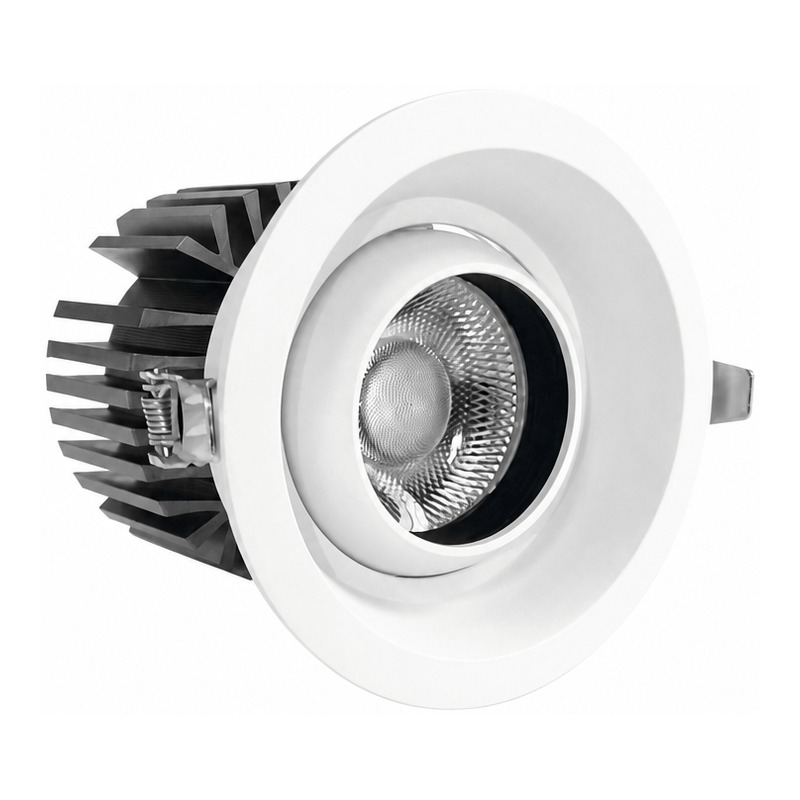

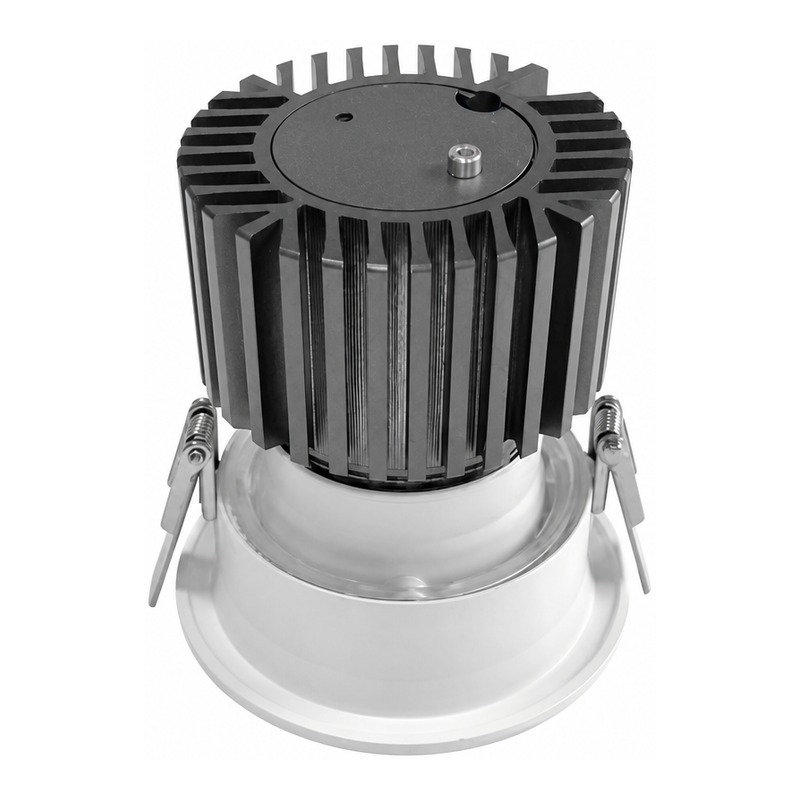

4″ Round LED Downlight Housing Kit
Specifications
| Power | Face Ø | Cutout | Height | Beam Angle | Trim Color |
|---|---|---|---|---|---|
| 7-15W | 88mm | 75-80mm | 90mm | Lens 15°/24°/38°55° | Optional White / Black |
| 18-22W | 88mm | 75-80mm | 110mm | Lens 15°/24°/38°55° | Optional White / Black |
| 25-30W | 88mm | 75-80mm | 130mm | Lens 15°/24°/38°55° | Optional White / Black |
| 30-35W | 108mm | 95-100mm | 120mm | Lens 15°/24°/38°55° | Optional White / Black |
| 35-40W | 108mm | 95-100mm | 138mm | Lens 15°/24°/38°55° | Optional White / Black |
| 35-42W | 138mm | 115-130mm | 135mm | Lens 15°/24°/38°55° | Optional White / Black |
| 45-55W | 138mm | 115-130mm | 150mm | Lens 15°/24°/38°55° | Optional White / Black |
| 55-65W | 138mm | 115-130mm | 170mm | Lens 15°/24°/38°55° | Optional White / Black |
General
| Model | ECO-LED-6211 |
| Shape | Square |
| Housing Material | Die-cast Aluminum (Heatsink + Trim Ring) |
| IP Rating | IP20 (Indoor) |
| Bracket | 020/1507 |

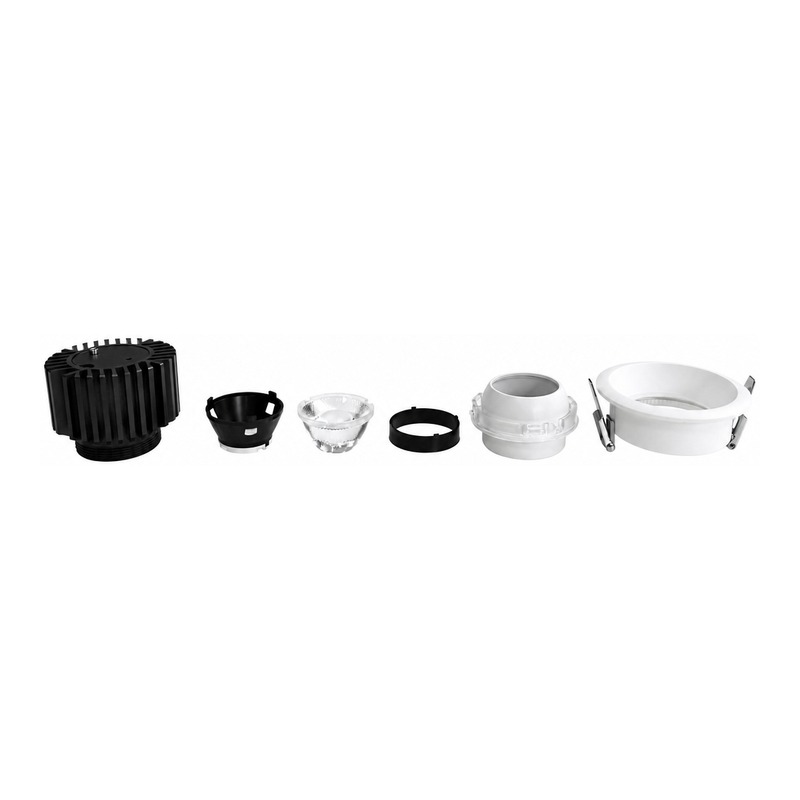

| Includes | Aluminum housing parts, optical parts, springs |
Key Features
- ✓ Die-cast aluminum housing for superior heat dissipation
- ✓ Optional sand white / sand black trim ring finish
- ✓ Tool-free spring clip installation, fits standard ceiling cutouts
- ✓ Multiple beam angle options (24°/36°/55°) with interchangeable lens
- ✓ IP20 rated for indoor dry locations
- ✓ OEM/ODM available, custom packaging supported
